Description

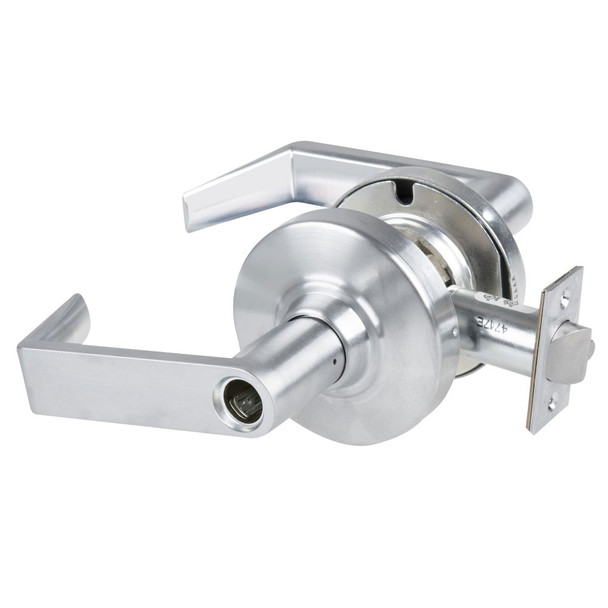

The Schlage ND53LD RHO 626 is a Grade 1 cylindrical lockset engineered for high-traffic commercial environments including healthcare, education, government, office and retail facilities. This non-handed lock accommodates door thicknesses from 1 5/8" to 2 1/8" and delivers proven reliability with a 10-year limited warranty, exceeding 3 million operating cycles without failure.
The 626 finish and RHO trim configuration offer flexibility across diverse architectural styles. Standard 2 3/4" backset with optional alternatives (2 3/8", 3 3/4", 5") simplifies retrofit projects. Keyed with Everest 29 S123 keyway and includes master keying, grand master keying and interchangeable core options. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying guidance and compatibility verification.
Specifications
- Grade 1 ANSI certification; 3+ million cycle rating
- Non-handed design for universal installation
- Door thickness: 1 5/8" to 2 1/8" standard (spacers available for 1 3/8")
- Backset: 2 3/4" standard; 2 3/8", 3 3/4", 5" optional
- Faceplate: 1 1/8" x 2 1/4" square corner beveled
- Latch bolt: 1/2" steel throw, deadlocking
- Cylinder: 6-pin Everest 29 S123 keyway, two keys per lock
- Finish: 626 (Satin Stainless Steel)
- Trim: RHO lever on rose
- Strike: ANSI curved lip 1 1/4" x 4 7/8" x 1 3/16"
- Warranty: Ten-year limited
