Description
The Schlage ND80BD is a Grade 1 cylindrical lockset engineered for commercial facilities including healthcare, education, government, office and retail environments. This non-handed lock installs easily on standard doors and delivers proven reliability with a 3-million-cycle tested design that exceeds industry standards for durability and security.
Compatible with doors 1 5/8 inch to 2 1/8 inch thick (standard backset 2 3/4 inch), the ND80BD ships keyed with a 6-pin Everest 29 S123 keyway and two keys per lock. As an authorized Schlage dealer, E.D. Locks provides expert installation guidance and master keying support. Contact sales@edlocks.com or 1-877-207-6067 for help choosing the right keying option or finish for your facility.
Specifications
- Brand: Schlage

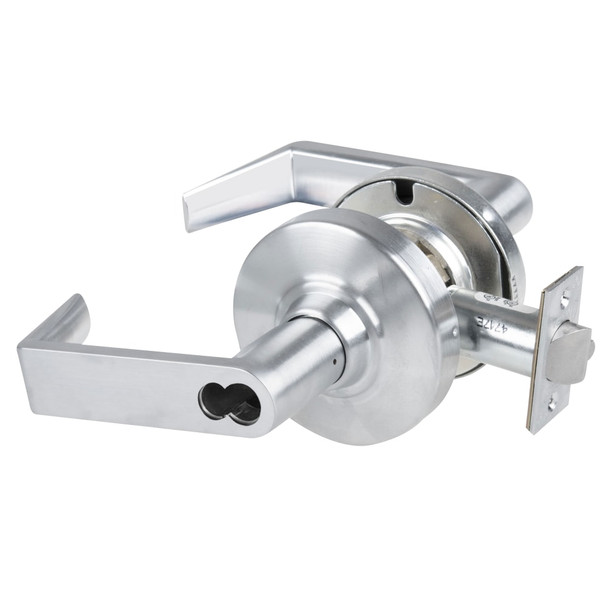

- Model: ND80BD RHO 626 EE214
- Grade: 1 (ANSI/BHMA certified)
- Handing: Non-handed
- Door Thickness: 1 5/8 inch to 2 1/8 inch (41-54 mm)
- Backset: 2 3/4 inch standard (70 mm); optional 2 3/8 inch, 3 3/4 inch, 5 inch
- Faceplate: 1 1/8 inch x 2 1/4 inch square corner, beveled
- Latch Bolt: Steel, 1/2 inch throw, deadlocking
- Cylinder: 6-pin Everest 29 S123 keyway
- Keys: Two patented nickel silver keys per lock
- Keying Options: Master key, grand master key, construction key, interchangeable core, Primus high-security
- Strike: ANSI curved lip 1 1/4 inch x 4 7/8 inch x 1 3/16 inch lip to center
- Warranty: Ten-year limited
