Description

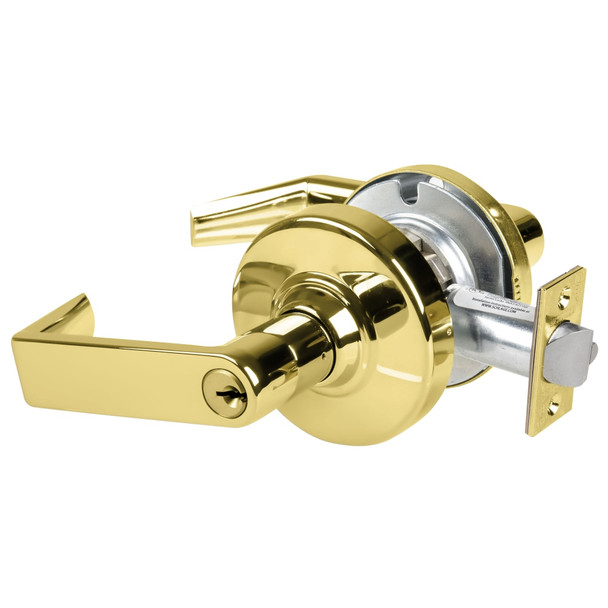

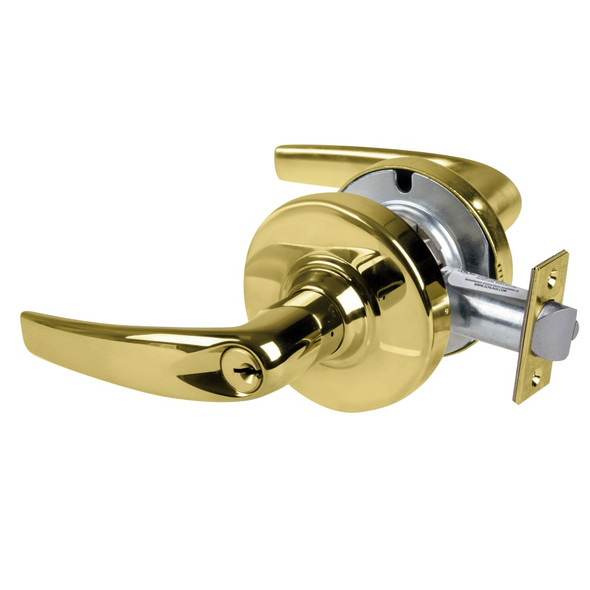

The Schlage ND53PD is a Grade 1 cylindrical lockset engineered for commercial facilities including healthcare, education, government, office and retail environments. This non-handed lock accommodates standard door thickness of 1 5/8" to 2 1/8" and features a deadlocking steel latch bolt with 1/2" throw, wire-wireless access control capability, and a ten-year limited warranty covering all functions.
The ND53PD comes keyed to the Everest 29 S123 keyway with two nickel silver keys, and supports master keying, grand master keying and construction keying options. As an authorized Schlage dealer, E.D. Locks provides expert technical guidance and keying assistance. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for compatibility questions or custom configurations.
Specifications
- Brand: Schlage
- Model: ND53PD RHO 605 EE212
- Grade: 1 (exceeds 3 million operating cycles)
- Handing: Non-handed
- Door Thickness: 1 5/8" to 2 1/8" (41-54mm) standard
- Backset: 2 3/4" (70mm) standard; optional 2 3/8", 3 3/4", 5"
- Faceplate: 1 1/8" x 2 1/4", square corner, beveled
- Latch Bolt: Steel, 1/2" throw, deadlocking
- Cylinder: 6-pin Everest 29 S123, two keys per lock
- Finish: Satin Brass (RHO 605)
- Strike: ANSI curved lip, 1 1/4" x 4 7/8" x 1 3/16"
- Warranty: Ten-year limited
