Description

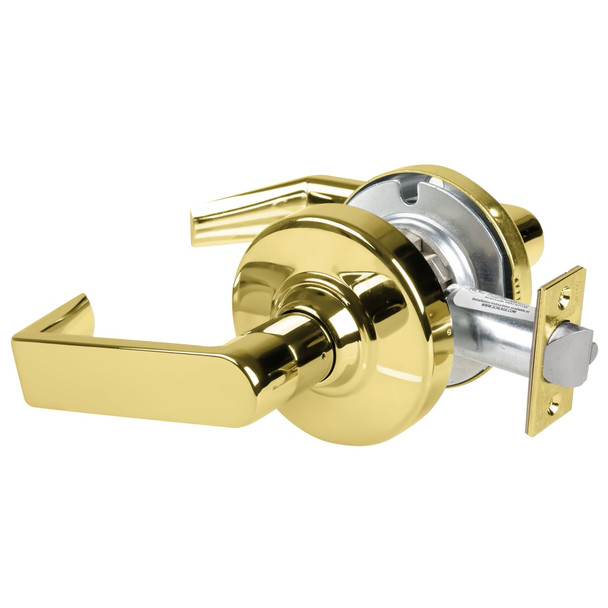

The Schlage ND10S RHO 605 is a Grade 1 cylindrical lockset designed for commercial buildings including healthcare, education, government, office and retail environments. This non-handed lock installs easily on standard door thicknesses and includes a 6-pin Everest keyway with two nickel silver keys per lock, solving the need for reliable, certified security across diverse facility types.
Compatible with doors 1 5/8" to 2 1/8" thick with standard 2 3/4" backset; optional backsets and accessories are available for custom installations. Features wire-wireless access control capabilities to meet modern security needs. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert keying guidance, master keying options, and to verify all specifications for your application.
Specifications
- Brand: Schlage
- Model: ND10S RHO 605 EE214
- Grade: 1 (certified, 3+ million operating cycles)
- Handing: Non-handed
- Door Thickness: 1 5/8" to 2 1/8" (41-54mm) standard
- Backset: 2 3/4" (70mm) standard; optional 2 3/8", 3 3/4", 5"
- Faceplate: 1 1/8" x 2 1/4", square corner beveled
- Latch Bolt: Steel, 1/2" throw, deadlocking
- Cylinder: 6-pin Everest 29 S123 keyway
- Keys: Two nickel silver per lock
- Keying: Master keying, grand master keying, construction keying available
- Strike: ANSI curved lip 1 1/4" x 4 7/8" x 1 3/16" standard
- Warranty: Ten-year limited
