Description

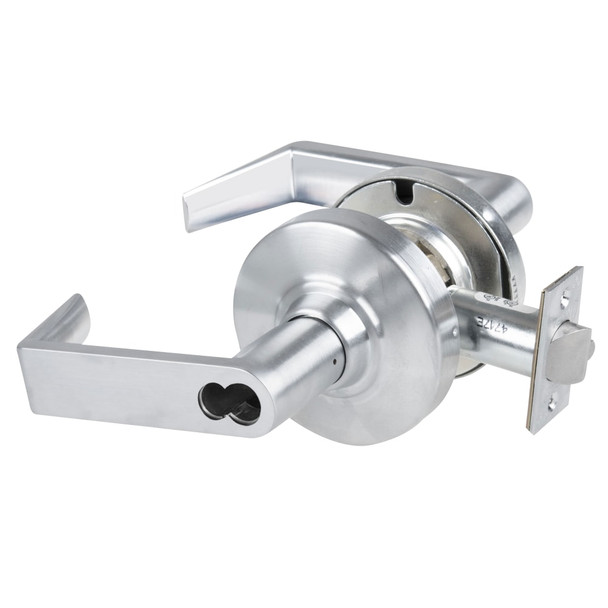

The Schlage ND80BD RHO 626 is a Grade 1 cylindrical lockset engineered for demanding commercial environments including healthcare, education, government, retail and office spaces. This non-handed lockset handles door thicknesses from 1 5/8" to 2 1/8" and features a deadlocking steel latch bolt, making it ideal for facilities requiring reliable security and access control integration.
The ND Series supports master keying, construction keying, and interchangeable core options, plus optional wire-wireless access control capabilities. Certified for over 3 million operating cycles, this lockset arrives with two patented nickel silver keys and includes a ten-year limited warranty. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying configuration guidance and expert installation support.
Specifications
- Brand: Schlage
- Model: ND80BD RHO 626 EE234
- Grade: 1
- Handing: Non-handed
- Door Thickness: 1 5/8" to 2 1/8" (41mm-54mm) standard
- Backset: 2 3/4" (70mm) standard; optional 2 3/8", 3 3/4", 5"
- Faceplate: 1 1/8" x 2 1/4" square corner, beveled
- Latch Bolt: Steel, 1/2" throw, deadlocking
- Cylinder: 6-pin Everest 29 S123 keyway
- Keys: Two patented nickel silver keys per lock
- Keying Options: Master keying, grand master keying, construction keying, interchangeable core
- Strike: ANSI curved lip 1 1/4" x 4 7/8" x 1 3/16"
- Lock Chassis: Zinc plated
- Warranty: Ten-year limited
