Description

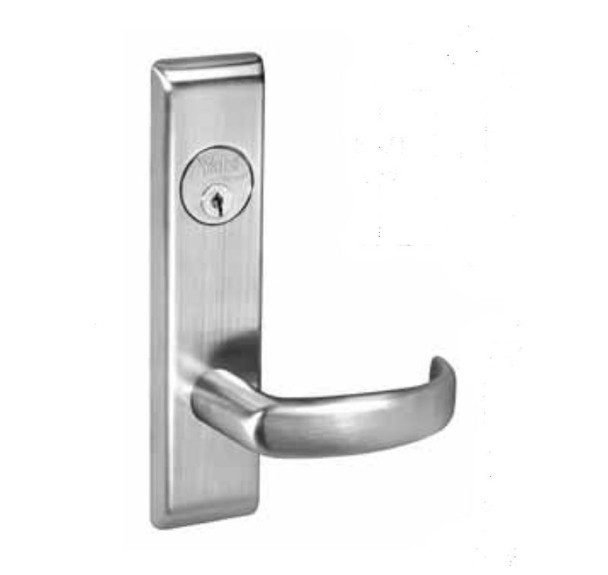

The Yale 8800 Series mortise lock delivers ANSI/BHMA Grade 1 security for commercial doors in schools, offices, and institutional buildings. This heavy-duty lock features a reinforced stainless steel deadbolt, vandal-resistant trim, and field-reversible handing, solving the need for durable, easy-to-install access control on standard 1-3/4" doors.
Compatible with standard door preparations and equipped with a 6-pin brass cylinder (two keys included), this lock installs quickly without complex adjustments. As an authorized Yale dealer, E.D. Locks provides expert guidance on finish selection, keying options, and door thickness compatibility. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support and to confirm specifications for your application.
Specifications
- Series: Yale 8800
- Certification: ANSI/BHMA A156.13, Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Cylinder: Brass, 6-pin, keyed-random with two keys
- Front: Bevel, free-floating adjustment 0 to 1/8" in 2"
- Strike: 1-1/4" curved lip, reversible
- Handing: Field reversible
- Warranty: 10 years mechanical
