Description

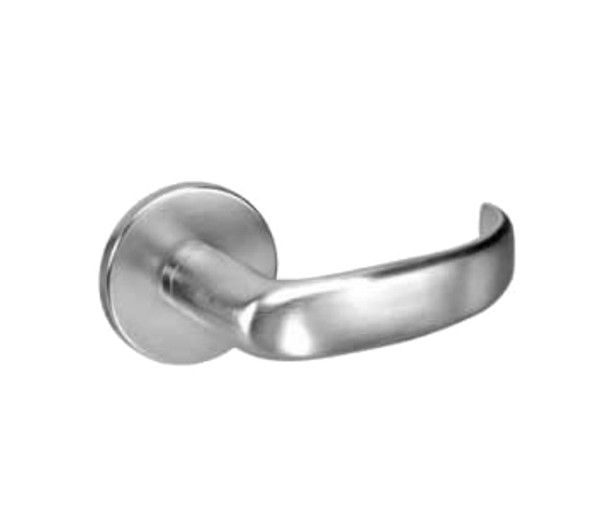

The Yale 8800 Series PBR8822FL is a commercial-grade mortise lock trim pack engineered for high-security applications requiring uncompromising strength and durability. Ideal for institutional, commercial, and high-traffic facilities, this Grade 1 certified lock delivers reinforced stainless steel construction and vandal-resistant trim to protect against forced entry and prolonged use.
This trim pack fits standard 1-3/4" doors and features field-reversible handing, a 3/4" stainless steel latchbolt, and 2-3/4" backset. The lock includes a 6-pin keyed-random cylinder with two keys and works with curved-lip strikes. As an authorized Yale dealer, E.D. Locks provides expert support for sizing, finish selection, and installation guidance. Contact us at 1-877-207-6067 or sales@edlocks.com with questions.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Door Thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Mechanism: Stainless steel
- Cylinders: Brass, 6-pin keyed-random (7-pin available to order)
- Front: Bevel front, free-floating adjustment from flat to 1/8" standard bevel
- Strike: 1-1/4" curved lip for 1-3/4" doors (other lengths available)
- Handing: Field reversible
- Finishes: Available in 17 finishes
- Warranty: 10 years mechanical
