Description

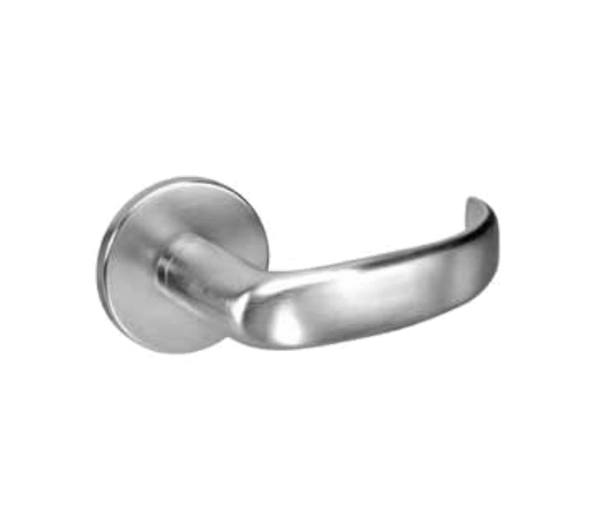

The Yale PBR8824FL 626 Trim Pack is a Grade 1 mortise lock assembly designed for commercial doors requiring maximum security and durability. Built with reinforced stainless steel components and heavy-duty vandal-resistant trim, it solves the need for reliable access control in high-traffic office, institutional and retail environments.
This trim pack fits standard 1-3/4" doors and features field-reversible handing for flexible installation. The 6-pin keyed-random cylinder comes with two keys; contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection from 17 available choices, and expert guidance on strike compatibility and door thickness specifications.
Specifications
- ANSI/BHMA A156.13 Grade 1 certified
- UL/cUL fire rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Cylinder: Brass, 6-pin keyed-random with two keys standard
- Field reversible handing
- Curved lip strike for 1-3/4" doors standard
- Available in 17 finishes
- 10-year mechanical warranty
