Description

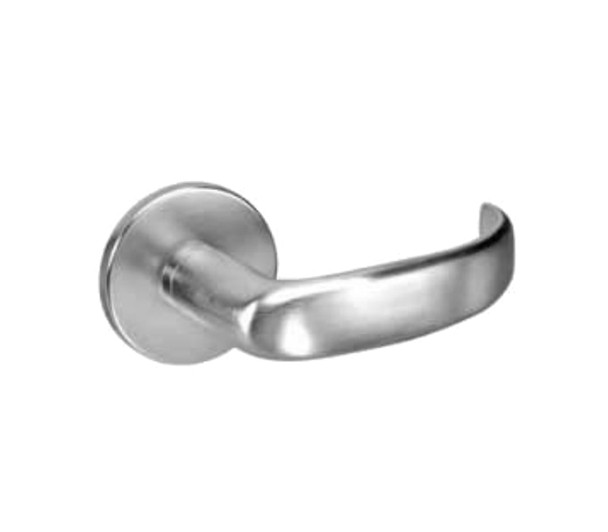

The Yale 8800 Series mortise lock trim pack is a heavy-duty commercial door lock designed for applications requiring maximum security and durability. This Grade 1 ANSI/BHMA certified lock features a reinforced stainless steel deadbolt and vandal-resistant trim, solving the challenge of protecting high-traffic commercial doors from forced entry and wear.
The PBR8827FL 626 trim pack fits standard 1-3/4" doors and is field-reversible for flexible installation. It includes a 6-pin keyed cylinder with two keys and works with standard 1-1/4" curved lip strikes. UL/cUL fire-rated to 3 hours, this lock carries a 10-year mechanical warranty. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for finish selection, keying options, and expert installation support.
Specifications
- Brand: Yale/Accentra
- Series: 8800 Mortise Lock
- ANSI/BHMA Certification: Grade 1, A156.13 Series 1000
- UL/cUL Rating: Fire rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard
- Cylinder: Brass, 6-pin, keyed-random with 2 keys
- Field Reversible: Yes
- Strike: 1-1/4" curved lip for 1-3/4" doors
- Finishes: Available in 17 options
- Warranty: 10-year mechanical
