Description

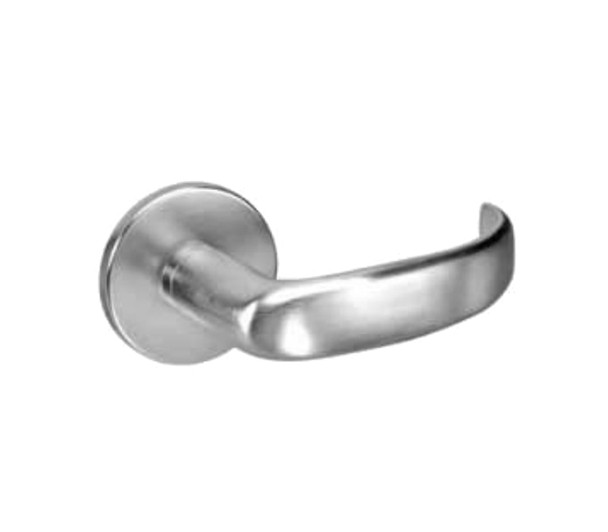

The Yale 8800 Series mortise lock trim pack is a heavy-duty commercial door security solution for facilities requiring ANSI/BHMA Grade 1 durability and UL fire-rated protection. Designed for 1-3/4" standard doors, it features a reinforced stainless steel deadbolt, field-reversible latchbolt, and vandal-resistant trim to withstand demanding institutional and commercial environments.
This trim pack includes keyed cylinders, reversible strike, and quick lever handing for flexible installation across various door configurations. As an authorized Yale dealer, E.D. Locks provides expert guidance on finish selection, backset requirements, and keying options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for compatibility verification and installation support.
Specifications
- Certification: ANSI/BHMA A156.13 Series 1000, Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (to 3-1/4" available to order)
- Mechanism: Stainless steel
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available to order)
- Strike: 1-1/4" curved lip for 1-3/4" doors, reversible
- Reversibility: Field reversible handing
- Finishes: 17 available finishes
- Warranty: 10 years mechanical
