Description

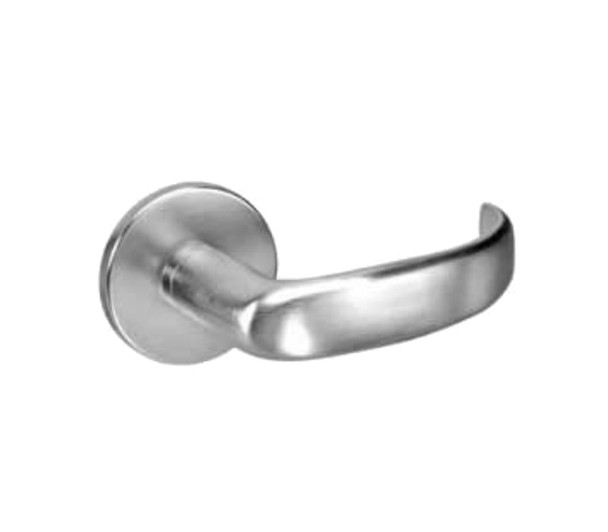

The Yale 8800 Series PBR8860-2FL is a commercial-grade mortise lock trim pack engineered for high-security applications in office buildings, institutions, and multi-tenant properties. This ANSI/BHMA Grade 1 certified lock delivers reinforced stainless steel construction, field-reversible handing, and vandal-resistant trim to protect against forced entry and tampering.
Compatible with 1-3/4" standard door thickness (up to 3-1/4" available), the PBR8860-2FL features a 2-3/4" backset and includes a standard curved lip strike and 6-pin keyed-random cylinders with two keys. As an authorized Yale/Accentra dealer, E.D. Locks provides expert configuration guidance and finish selection from 17 options. Contact sales@edlocks.com or 1-877-207-6067 for detailed specifications, keying assistance, or custom orders.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Grade 1
- UL/cUL Fire Rating: Up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" to order)
- Front: Bevel front, free-floating 1/8" in 2"
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available)
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door standard
- Finishes: 17 available
- Warranty: 10 years mechanical
