Description
The Yale 8800 Series mortise lock is a commercial-grade security solution for interior and exterior doors in offices, retail, and institutional buildings. This ANSI/BHMA Grade 1 certified lock combines reinforced stainless steel construction with vandal-resistant trim to deliver durability and strength in demanding environments where reliability matters.

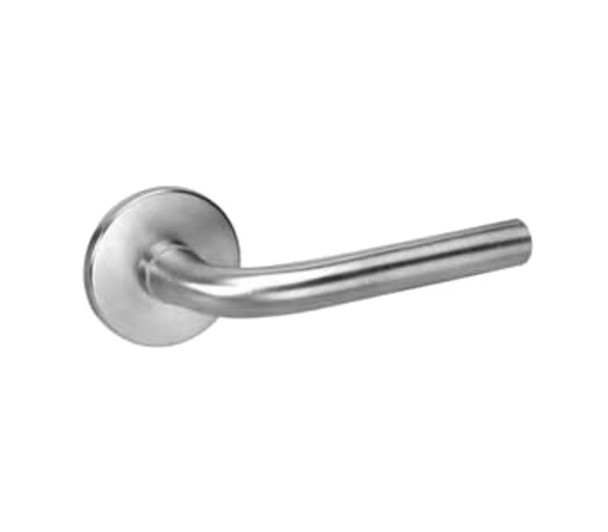

The PNR8818-2FL trim pack fits standard 1-3/4" doors and features field-reversible handing for flexible installation. Includes a 6-pin brass cylinder with two keys. As an authorized Yale dealer, E.D. Locks provides expert guidance on finish selection, keying options, and compatibility. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Grade 1
- UL/cUL Fire Rating: Up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Front: Bevel, free-floating (flat to 1/8" standard bevel)
- Cylinder: Brass, 6-pin, keyed-random, two keys standard
- Strike: 1-1/4" curved lip for 1-3/4" door, reversible
- Field Reversible: Yes
- Finishes: 17 options available
- Warranty: 10 years mechanical
