Description

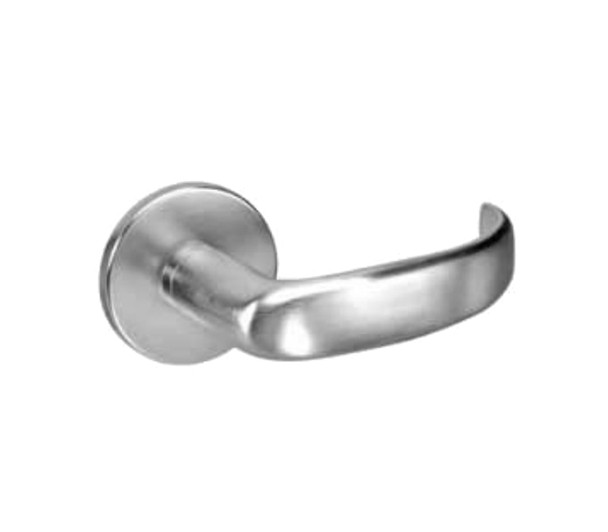

The Yale 8800 Series mortise lock trim pack is engineered for demanding commercial environments requiring ANSI/BHMA Grade 1 security and durability. This complete trim assembly solves the need for reliable access control on interior and passage doors, with field-reversible handing that simplifies installation and reduces inventory costs.
The PBR8862FL 626 trim pack fits standard 1-3/4" doors and features a reinforced stainless steel deadbolt, 3/4" latchbolt throw, and 6-pin keyed cylinders with two keys included. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for finish selection guidance, keying options, and expert installation support.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Operational Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Front: Bevel front, free-floating, adjustable flat to 1/8" standard bevel
- Cylinders: Brass, 6-pin keyed-random with two keys standard (7-pin available)
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door standard
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
