Description

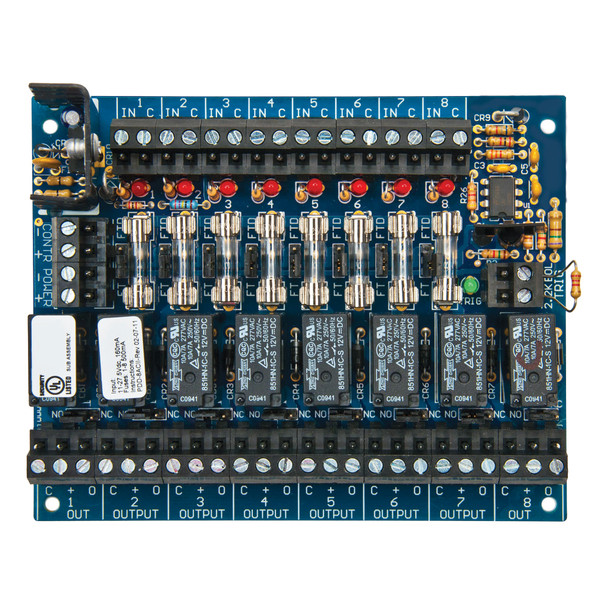

The Securitron PDB-8F8R2 is an eight-channel power distribution board that splits a single AC or DC power supply output into multiple independent circuits with individual fusing and status LEDs. Ideal for installers managing multiple electrified door locks, access control devices, or magnetic locks from one power source, it eliminates the need for separate power supplies and simplifies troubleshooting.
Compatible with 12 or 24V systems accepting both AC and DC input up to 32V, the PDB-8 features a main power indicator and individually fused outputs with standard automotive ATO fuses and Class 2 power-limited design. For expert help selecting the right power distribution solution or configuring your system, contact our authorized Securitron dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Securitron
- Model: PDB-8F8R2
- Input voltage: AC or DC up to 32V
- Output voltage: 12 or 24V (same as input)
- Channels: 8 independent outputs
- Output fuses: Standard 3AGC
- Main input fuse: Automotive ATO, surge protection
- Output rating: Class 2 power limited
- Status indicators: LED on main input and each output
- Construction: RoHS lead-free, made in USA
