Description

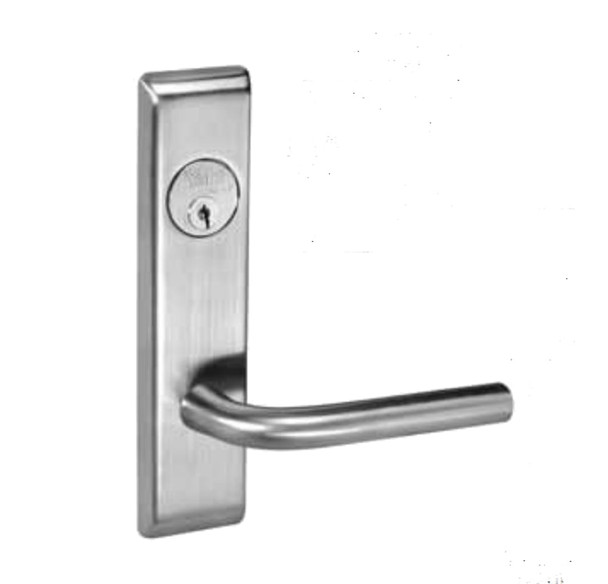

The Yale 8800 Series mortise lock trim pack delivers commercial-grade security for mid to high-traffic doors. Designed for offices, retail, hospitality and institutional buildings, this ANSI/BHMA Grade 1 certified lock combines a reinforced stainless steel deadbolt with heavy-duty, vandal-resistant trim to protect against forced entry and wear.
Field-reversible handing and quick lever installation simplify setup on standard 1-3/4" doors. The 626 finish is available, along with 16 other options to match your decor. As an authorized Yale dealer, E.D. Locks provides expert assistance with specification, keying, and compatibility questions. Call 1-877-207-6067 or email sales@edlocks.com for personalized support.
Specifications
- ANSI/BHMA Grade 1 certified per A156.13, Series 1000
- UL/cUL fire-rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Deadbolt: Reinforced stainless steel
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available)
- Strike: 1-1/4" curved lip for 1-3/4" door (reversible)
- Field reversible handing
- 10-year mechanical warranty
- Available in 17 finishes
