Description

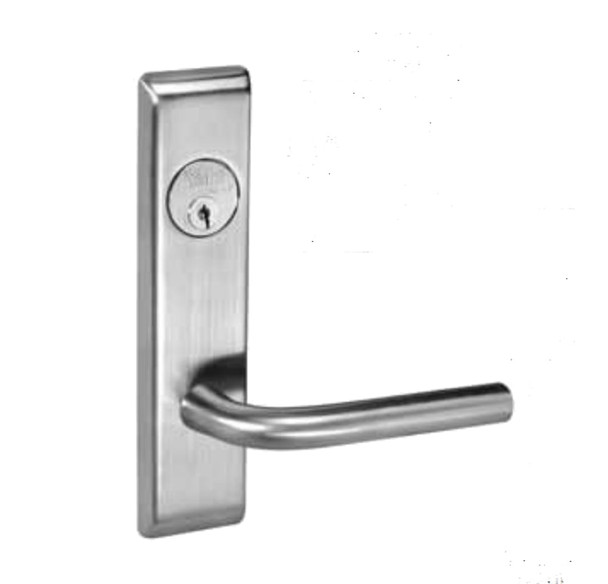

The Yale 8800 Series mortise lock trim pack delivers ANSI/BHMA Grade 1 security for commercial doors. Designed for strength and durability, this lock suits office buildings, retail, and institutional applications where reliable access control matters. Field-reversible handing and quick lever installation simplify setup on new or existing doors.
Compatible with standard 1-3/4" door thickness and custom orders up to 3-1/4". The trim pack includes 6-pin keyed-random cylinders with two keys; 7-pin cylinders available by special order. As an authorized Yale dealer, E.D. Locks provides expert configuration guidance and product support. Contact sales@edlocks.com or call 1-877-207-6067 for keying options or finish selection from 17 available colors.
Specifications
- ANSI/BHMA Certified: A156.13, Series 1000, Operational Grade 1
- Fire Rating: UL/cUL rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" to order)
- Fronts: Bevel front, free-floating, adjustable flat to 1/8" bevel
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available)
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door standard
- Finishes: 17 available options
- Warranty: 10 year mechanical
- Windstorm: Certified per local codes
