Description

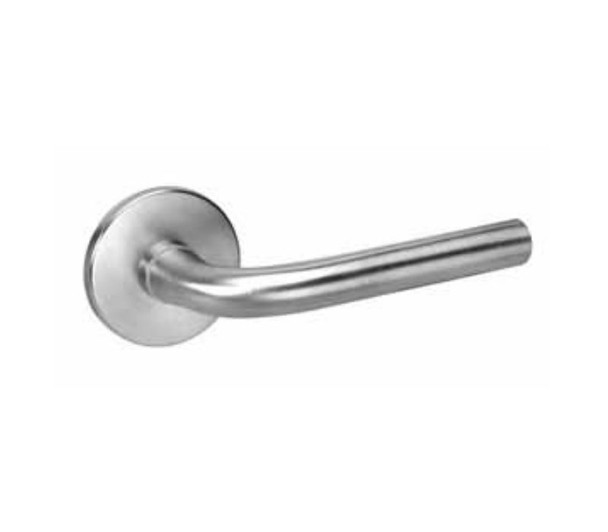

The Yale 8800 Series PNR8835FL is a heavy-duty mortise lock engineered for commercial doors requiring ANSI/BHMA Grade 1 security and durability. Built with reinforced stainless steel deadbolt and vandal-resistant trim, this lock solves the need for long-lasting, reliable access control in high-traffic and demanding environments.
This mortise lock fits standard 1-3/4" doors and features field-reversible handing for flexible installation. It comes keyed-random with two keys and is UL/cUL fire-rated up to 3 hours. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for finish selection, cylinder upgrades, and expert installation guidance tailored to your door and application.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Operational Grade 1
- UL/cUL Fire Rating: Up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Fronts: Bevel front, free-floating (flat to 1/8" standard bevel)
- Cylinders: Brass, 6-pin, keyed-random with two keys (7-pin available to order)
- Field Reversible: Yes
- Strike: 1-1/4" curved lip for 1-3/4" door (other lengths available to order)
- Available Finishes: 17 finishes
- Warranty: 10 year mechanical
