Description

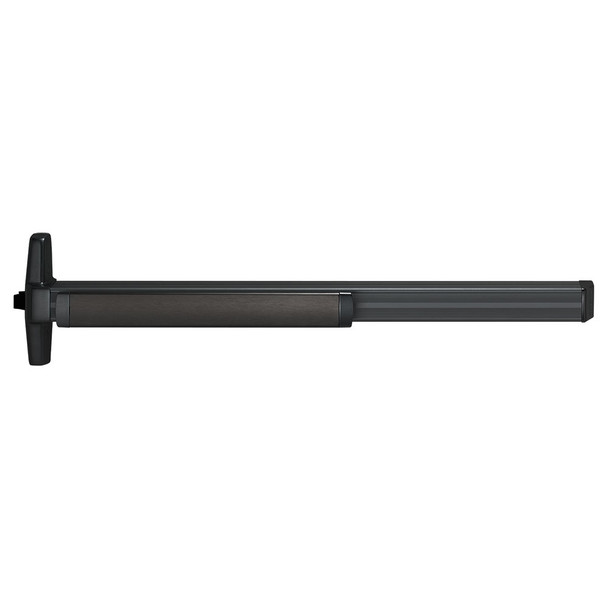

The Von Duprin QEL33ANL-OP 3 315 is a Grade 1 panic exit device designed for single and double doors with mullion configurations. Built to ANSI A156.3:2014 standards and UL-listed for safety, this rim-mounted device solves the critical need for reliable emergency egress on commercial and institutional doors while meeting all life-safety codes.
This non-handed device suits wood and metal doors from 2'4" to 4' wide and installs at a standard 39 13/16" centerline from finished floor. Customize with electric latch retraction, monitor switches, or alarm kits to match your security requirements. As an authorized Von Duprin dealer, E.D. Locks provides expert configuration guidance and fast shipping. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for technical assistance.
Specifications
- Brand: Von Duprin
- Model: QEL33ANL-OP 3 315
- Grade: ANSI A156.3:2014 Grade 1
- Device Type: Rim Panic Exit Device
- Handed: Non-handed (except with SS option)
- Door Width Range: 2'4" to 4' (711mm to 1219mm)
- Centerline Height: 39 13/16" (1011mm) or 39 11/16" (1008mm) with mullion
- Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
- Latch Bolt: Deadlocking, 3/4" (19mm) throw
- Pushbar Projection: Neutral 3 13/16" (97mm), Depressed 3 1/16" (78mm)
- Dogging: Hex key standard; CD Cylinder or LD Less Dogging options
- Electric Options: LX, RX, RX2, SS, EL, ALK available
- Misc Options: PN Pneumatic Latch Retraction, GBK Glass Bead Kit
- Strike: 1439 Dull Black
- Fasteners: #425 SNB (1 3/4" to 2 1/4") for wood and metal doors
