Description

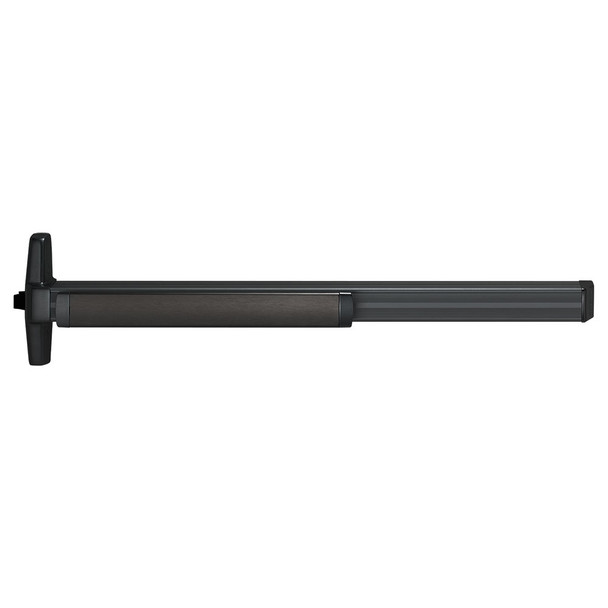

The Von Duprin QEL33ANL-OP 4 315 is a Grade 1 panic exit device designed for single and double doors with mullions. UL listed and ANSI A156.3 compliant, it features a deadlocking latchbolt and hex key dogging standard. Ideal for commercial facilities requiring reliable emergency egress hardware that meets strict building codes.
This rim-mounted device is non-handed (except with signal switch option) and compatible with wood and metal doors sized 3' to 4'. E.D. Locks & Security provides expert configuration assistance for dogging, electric, and monitoring options. Contact our team at sales@edlocks.com or 1-877-207-6067 for authorized dealer support and product specifications.
Specifications
- Grade 1, ANSI A156.3 2014 compliant
- Device centerline: 39 13/16 inches from finished floor
- Center case dimensions: 8 3/16 x 2 13/32 x 1 9/16 inches
- Mechanism case: 2 1/4 x 2 1/4 inches
- Latchbolt throw: 3/4 inch, deadlocking
- Pushbar projection: 3 13/16 inches neutral, 3 1/16 inches depressed
- Door size range: 3' to 4' (711mm to 1219mm)
- Strike: 1439 Dull Black
- Standard dogging: Hex key; optional CD Cylinder or LD Less Dogging
- Electric options: LX/RX latchbolt monitor, EL electric latch retraction, ALK alarm kit
- Sex bolts: 1 3/4 to 2 1/4 inches for wood and metal doors
