Description

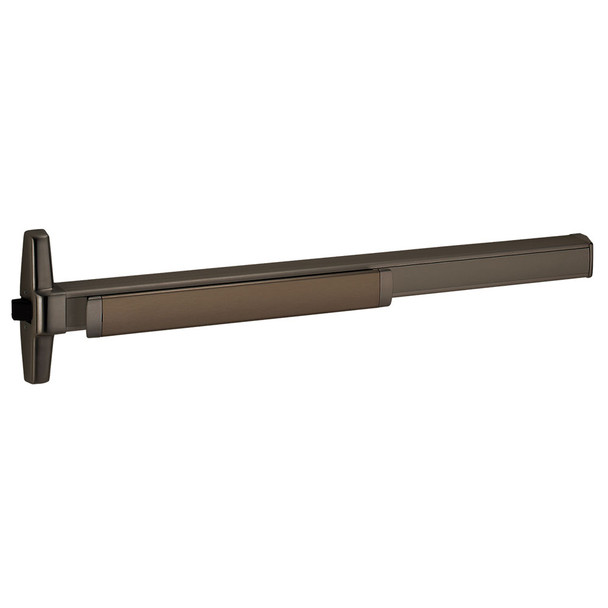

The Von Duprin QEL35AEO 3 643E is a UL-listed panic exit device designed for single and double doors with mullion. Built to ANSI A156.3-2014 Grade 1 standards, this rim-mounted hardware provides reliable emergency egress for commercial facilities, schools, hospitals, and high-traffic venues where code-compliant panic hardware is essential.
This non-handed device fits doors 2'10" to 4' wide and mounts 39 13/16" from finished floor. Compatible with wood and metal doors using included SNB fasteners. An authorized E.D. Locks dealer ensures proper selection, installation guidance, and access to all trim options and functions. Contact our experts at sales@edlocks.com or 1-877-207-6067 for assistance.
Specifications
- Brand: Von Duprin
- Model: QEL35AEO 3 643E
- Type: Rim Exit Device
- Grade: ANSI A156.3-2014 Grade 1
- UL Listed: Yes
- Application: Single and double doors with mullion
- Device Lengths: 2'4" to 3' (711mm to 914mm)
- Door Size: 2'10" to 4' (864mm to 1219mm)
- Mount Height: 39 13/16" from finished floor (1011mm)
- Center Case Dimensions: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
- Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Pushbar Projection (Neutral): 3 13/16" (97mm)
- Pushbar Projection (Depressed): 3 1/16" (78mm)
- Latch Bolt: Deadlocking, 3/4" (19mm) throw
- Handed: Non-handed (except with SS signal switch option)
- Compatible Doors: Wood and metal
- Fasteners: SNB 1 3/4" to 2 1/4" (44mm to 57mm) included
