Description

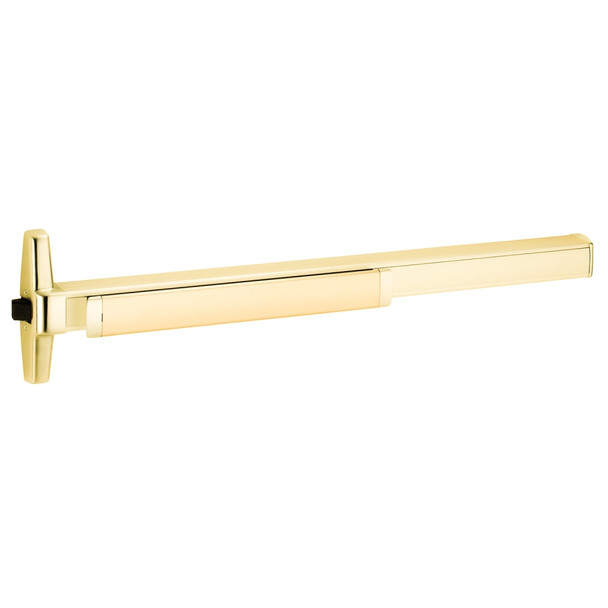

The Von Duprin QEL35AEO 3 US3 is a UL-listed rim exit device designed for single and double doors with mullions. Grade 1 rated to ANSI A156.3-2014, this panic hardware solution provides reliable emergency egress for commercial buildings, schools, hospitals, and any facility requiring code-compliant life safety hardware.
This non-handed device (except with signal switch option) installs on standard door widths 2'10" to 4' with center case dimensions of 8 3/16" x 1 9/16" x 2 13/32". The 35A model features a smooth mechanism case and deadlocking 3/4" latch bolt. As an authorized Von Duprin dealer, E.D. Locks provides expert specification assistance and fast shipping. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for installation guidance or compatibility questions.
Specifications
- Brand: Von Duprin
- Model: QEL35AEO 3 US3
- Grade: ANSI A156.3-2014 Grade 1
- Device Length: 2'4" to 3'
- Door Width: 2'10" to 4'
- Latch Bolt Throw: 3/4"
- Center Case: 8 3/16" x 1 9/16" x 2 13/32"
- Mechanism Case: 2 1/4" x 2 1/4"
- Pushbar Neutral Projection: 3 13/16"
- Pushbar Depressed Projection: 3 1/16"
- UL Listed
- Non-handed (except with SS signal switch option)
