Description

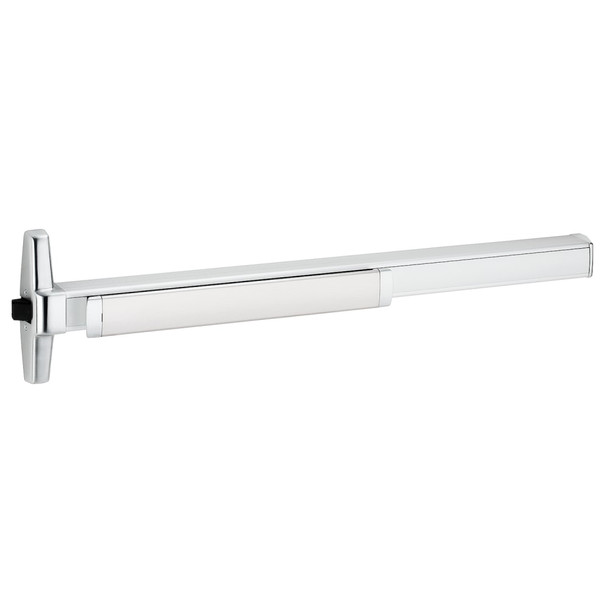

The Von Duprin QEL35AEO 4 US26 is a Grade 1 panic exit device designed for single and double doors with mullions. UL listed and ANSI A156.3-2014 compliant, it provides reliable emergency egress for commercial facilities, schools, hospitals, and high-traffic buildings where code-compliant panic hardware is essential.
This non-handed rim device fits doors 2'10" to 4' wide and mounts at 39 13/16" from finished floor. Compatible with wood and metal doors, it includes fasteners for standard installations. As an authorized Von Duprin dealer, E.D. Locks offers expert product selection and support at sales@edlocks.com or 1-877-207-6067 to ensure your panic hardware meets local fire codes and building requirements.
Specifications
- Model: QEL35AEO 4 US26
- Grade: ANSI A156.3-2014 Grade 1
- Device length: 2'4" to 3' (711mm to 914mm)
- Door width: 2'10" to 4' (864mm to 1219mm)
- Centerline height: 39 13/16" (1011mm) standard, 39 11/16" (1008mm) with mullion
- Case dimensions: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
- Mechanism case: 2 1/4" x 2 1/4" (57mm x 57mm)
- Pushbar projection: 3 13/16" neutral (97mm), 3 1/16" depressed (78mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Non-handed (except with signal switch option)
- Includes fasteners for wood and metal doors
