Description

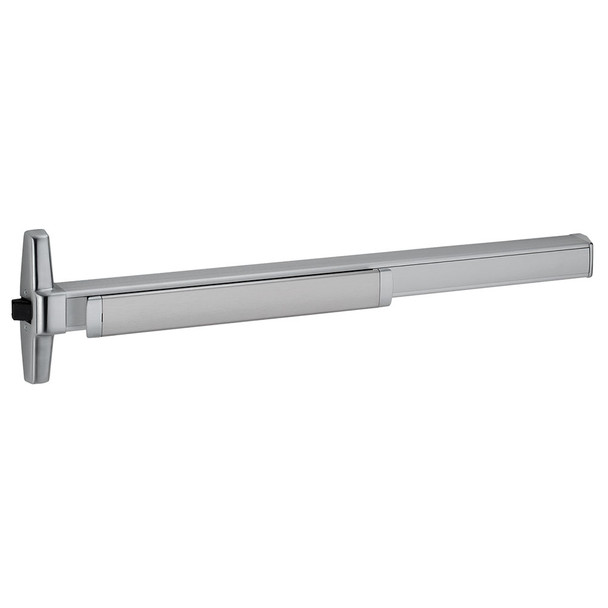

The Von Duprin QEL35AEO 4 US28 is a UL-listed rim exit device engineered for single and double doors with mullions. Grade 1 ANSI A156.3-2014 certified, it delivers reliable panic hardware for high-traffic commercial entries, schools, hospitals, and venues where life safety compliance is non-negotiable.
This non-handed device fits doors 2'10" to 4' wide and mounts 39 13/16" from finished floor. Compatible with wood and metal doors using included sex bolts. Deadlocking 3/4" latch bolt resists forced entry. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for keying options, trim selection, and expert guidance on signal switch configurations.
Specifications
- Brand: Von Duprin
- Model: QEL35AEO 4 US28
- Finish: US28
- UL Listed: Yes
- ANSI Grade: Grade 1 (A156.3-2014)
- Device Type: Rim Exit Device
- Compatible Doors: Single and double doors with mullion
- Door Width Range: 2'10" to 4' (864 mm to 1219 mm)
- Device Length: 3'2" to 3'4" (711 mm to 914 mm)
- Centerline Height: 39 13/16" (1011 mm) or 39 11/16" (1008 mm) with mullion
- Center Case Dimensions: 8 3/16" x 1 9/16" x 2 13/32" (208 mm x 40 mm x 62 mm)
- Mechanism Case Dimensions: 2 1/4" x 2 1/4" (57 mm x 57 mm)
- Pushbar Projection Neutral: 3 13/16" (97 mm)
- Pushbar Projection Depressed: 3 1/16" (78 mm)
- Latch Bolt: Deadlocking, 3/4" (19 mm) throw
- Door Material: Wood and metal doors
- Fasteners: Includes 1 3/4" to 2 1/4" sex bolts (SNB)
- Handed: Non-handed (except with SS signal switch option)
