Description

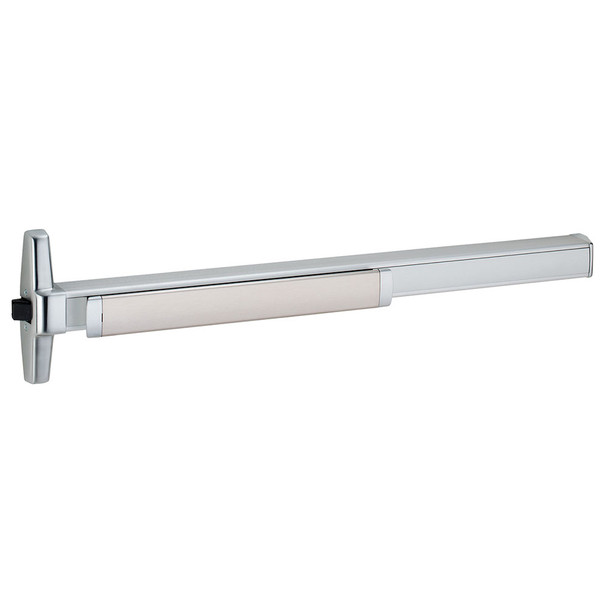

The Von Duprin QEL35ANL-OP 4 26D is a UL-listed rim exit device designed for single and double doors with mullion. Built to ANSI A156.3-2014 Grade 1 standards, it provides reliable panic exit hardware for commercial and institutional applications where code-compliant emergency egress is critical.
This non-handed device (except with signal switch option) fits doors 2'10" to 4' wide and installs at 39 13/16" centerline from finished floor. Compatible with wood and metal doors using included sex bolts. As an authorized Von Duprin dealer, E.D. Locks offers expert guidance on configuration, finish selection, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for assistance.
Specifications
- Model: QEL35ANL-OP 4 26D
- Grade: ANSI A156.3-2014 Grade 1
- Device Length: 2'4" to 3' (711mm to 914mm)
- Door Width: 2'10" to 4' (864mm to 1219mm)
- Centerline Height: 39 13/16" from finished floor (1011mm); 39 11/16" with mullion (1008mm)
- Center Case: 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
- Mechanism Case: 2 1/4" x 2 1/4" (57mm x 57mm)
- Pushbar Projection (Neutral): 3 13/16" (97mm)
- Pushbar Projection (Depressed): 3 1/16" (78mm)
- Latch Bolt: Deadlocking, 3/4" throw (19mm)
- Non-handed (except with SS signal switch option)
- Includes sex bolts for wood and metal doors
