Description

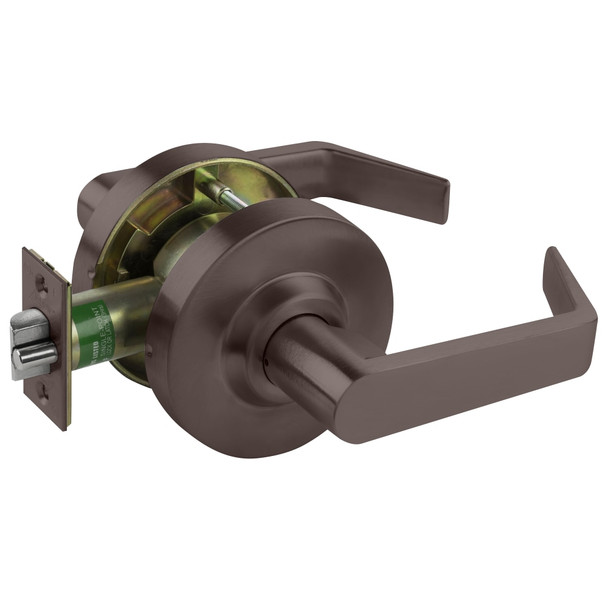

The Arrow QL02-SR-613E is a Grade 1 cylindrical lockset designed for commercial doors requiring heavy-duty security and abuse resistance. Its freewheeling lever mechanism protects against forced entry, making it ideal for high-traffic facilities, offices, and institutional buildings where reliability and longevity matter.
This lockset installs quickly with a two-screw design into standard 2-1/8" door bores and fits doors 1-3/8" to 1-3/4" thick with a 2-3/4" backset. It accepts both Arrow AR and Schlage CS keyways, offering flexible keying options. As an authorized Arrow dealer, E.D. Locks provides expert guidance on compatibility, handing, and installation. Contact us at sales@edlocks.com or 1-877-207-6067 for technical support and bulk pricing.
Specifications
- Grade: 1
- Bore diameter: 2-1/8" (53.97mm)
- Backset: 2-3/4" (69.85mm)
- Door thickness: 1-3/8" to 1-3/4" (34.93mm to 44.45mm)
- Latch throw: 1/2" (12.7mm) stainless steel
- Latch front: 1-1/8" x 2-1/4"
- Lever length: 4-3/4" (120.65mm) pressure cast zinc
- Rose diameter: 3-11/32" (84.8mm) wrought brass
- Door projection: 2-17/32" (64.5mm)
- Strike: 4-7/8" ANSI (123.83mm)
- Cylinder: 6-pin solid brass, Arrow AR and Schlage CS keyway
- Handing: Non-handed
- Warranty: 10 years mechanical
- Keys: 2 brass keys, keyed different
- UL listed
