Description

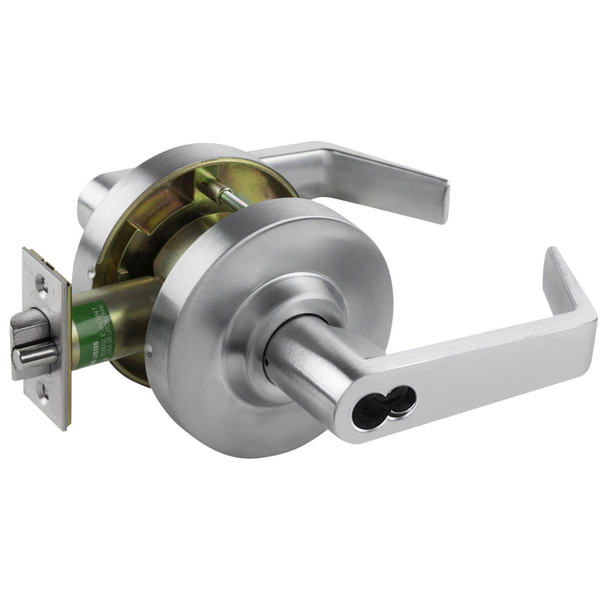

The Arrow QL82 is a Grade 1 cylindrical lockset designed for commercial doors requiring abuse-resistant security. Its freewheeling lever design protects against tampering while supporting quick two-screw installation. Ideal for new builds, renovations, and high-traffic facilities needing reliable keyed entry with a 10-year mechanical warranty.
This lockset fits standard 2-1/8 inch bore preparation and works with 1-3/8 inch to 1-4 inch thick doors. It accepts Arrow AR and Schlage CS keyways for flexible keying options. As an authorized Arrow dealer, E.D. Locks provides expert guidance on handing, master keying, and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for free technical support.
Specifications
- Grade: 1
- Door Bore: 2-1/8 inch (53.97mm)
- Backset: 2-3/4 inch (69.85mm)
- Door Thickness: 1-3/8 inch to 1-3/4 inch (34.93mm to 44.45mm)
- Latch: Stainless steel, 1/2 inch throw, UL listed, guarded
- Latch Front: 1-1/8 inch x 2-1/4 inch
- Lever Length: 4-3/4 inch (120.65mm)
- Rose Diameter: 3-11/32 inch (84.8mm) wrought brass
- Door Projection: 2-17/32 inch (64.5mm)
- Strike: 4-7/8 inch ANSI (123.83mm)
- Cylinder: Solid brass, 6-pin, Arrow AR and Schlage CS keyway
- Keying: Keyed different, 2 brass keys included
- Handing: Non-handed
- Warranty: 10 years mechanical
- Packaging: 6 per case
