Description

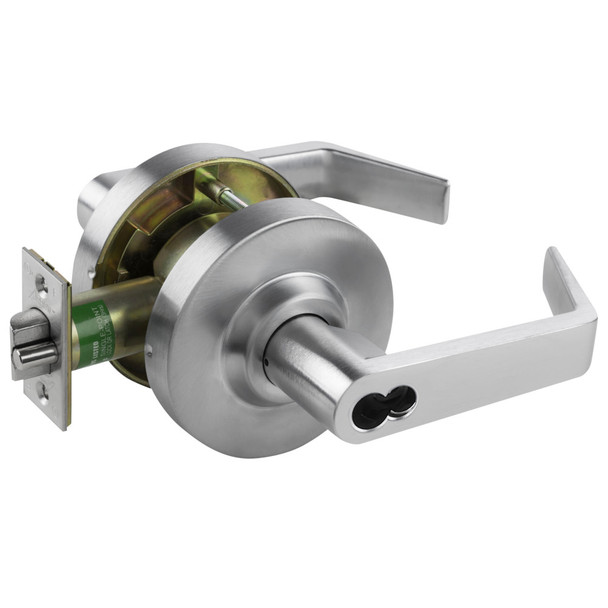

The Arrow QL82 is a Grade 1 cylindrical lockset designed for commercial doors requiring reliable security and durability. Its freewheeling lever resists abuse, while the two-screw installation enables quick setup. Ideal for upgrading or replacing existing locksets in office, retail, and institutional settings.
Fits standard 2-1/8 inch bore, 2-3/4 inch backset, and doors 1-3/8 to 1-7/4 inches thick. Includes solid brass 6-pin cylinder (Arrow AR or Schlage CS keyway), stainless steel latch, and two brass keys. As an authorized Arrow dealer, E.D. Locks provides expert guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure proper keying and installation.
Specifications
- Grade: 1
- Bore: 2-1/8 inch
- Backset: 2-3/4 inch
- Door Thickness: 1-3/8 to 1-3/4 inch
- Latch: Stainless steel, 1/2 inch throw, UL listed
- Latch Front: 1-1/8 x 2-1/4 inch
- Cylinder: Solid brass, 6-pin, Arrow AR or Schlage CS keyway
- Lever Length: 4-3/4 inch, pressure cast zinc
- Rose Diameter: 3-11/32 inch, wrought brass
- Projection: 2-17/32 inch from door face
- Strike: 4-7/8 inch ANSI
- Handing: Non-handed
- Warranty: 10 years mechanical
- Packaging: 6 per case
- Keys: 2 brass keys included
