Description

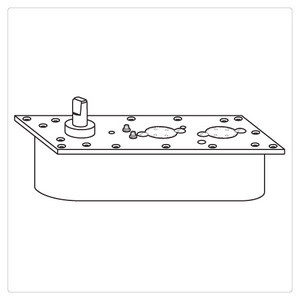

Rixson Model 40 40N LPA Heavy-Duty Non-Hold Open Floor Closer Body Center Hung Double Acting Satin Chrome Finish (US26D) Less All Parts
Application
- Double Acting, Non-handed
- Interior or Exterior^ Doors
- Weight to 300 lbs.
- Sizes up to 4'0" x 8'6"* (1219 x 2591mm)
Product Description & Features
- Centering arm with adjustment screws in faces of door (critical for double acting doors)
- Adjustable closing speed valves for each direction of door swing
- Mechanism returns door to center
- Available non-hold open (N) or automatic hold open (A) at 90° (requires 93° swing) or 100° (requires 103° swing)
- Not available in Delayed Action (DA)
- Maximum door opening 103°
- Auxiliary door stop required, overhead or floor type
- Models available to meet ICC/ANSI A117.1 low opening force requirements, prefix “PH”. (For 8-1/2 lbs. of opening force prefix PH and suffix 8-1/2 lbs.)
- Cold weather fluid option – specify “CWF”
- Sealed closer option – specify “SC”
- Available with floor plate or threshold installation (floor plate shown) Steel cement case
- Arm reinforcement bracket for wood doors – prefix “W”
- Standard top pivot: #340 NOT included
- Not allowed for fire rated doors
- Furnished with wood and machine screws
- Extended spindles available in 1/2" increments up to 2" longer than standard
Technical Information
* For doors taller than 8'6" use top pivot # 345 in lieu of 340
^ Primary means of egress should not use double-acting closers
