Description

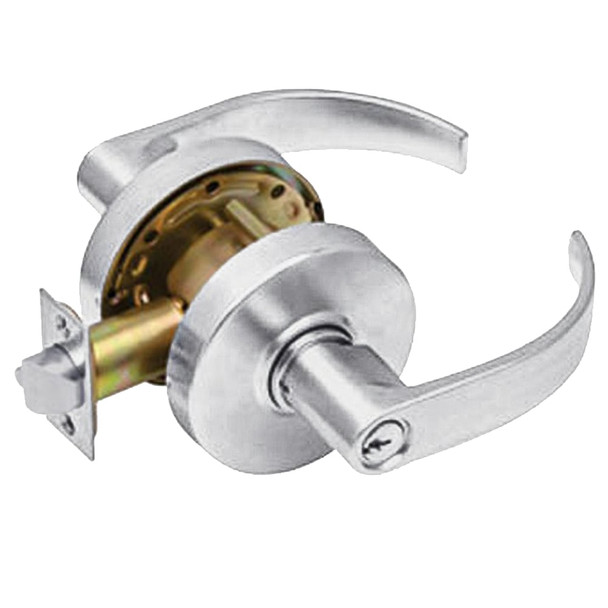

The Arrow RL17 is an economical cylindrical lockset designed for multi-family housing and light commercial doors. It features cold-rolled steel construction with zinc dichromate finish, a brass latch with 1/2" throw, and removable through-bolts for flexible installation. Ideal for property managers and contractors seeking reliable, affordable security.
This lockset fits standard 1-3/8" to 1-3/4" doors with a 2-1/8" bore and is available in 2-3/8" or 2-3/4" backsets. As an authorized Arrow dealer, E.D. Locks provides expert guidance on keying options, including Arrow A keyway or Schlage CS, plus a five-year mechanical warranty. Contact sales@edlocks.com or 1-877-207-6067 for compatibility questions.
Specifications
- Brand: Arrow
- Model: RL17-BRR-26
- Door Bore: 2-1/8" (53.97mm)
- Backset Options: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)
- Door Thickness: 1-3/8" to 1-7/4" (34.93mm to 44.45mm)
- Latch: Brass, 1/2" (12.7mm) throw, UL Listed, guarded
- Latch Front: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Lever: Pressure cast zinc, 4-3/4" (120.65mm) length
- Rose: Wrought brass, 3-3/8" (85.73mm) diameter
- Total Projection: 2-1/2" (63.5mm)
- Cylinder: Solid brass, 6-pin, Arrow A keyway standard
- Keyway Options: Schlage CS, other competitive keyways available
- Keys Included: 2 brass keys
- Strike Options: 4-7/8" ANSI, 2-3/4" T strike, or 2-1/4" full lip
- Handing: Non-handed
- Thru-bolts: Removable standard
- Warranty: Five-year mechanical
- Packaging: 10 per case
