Description

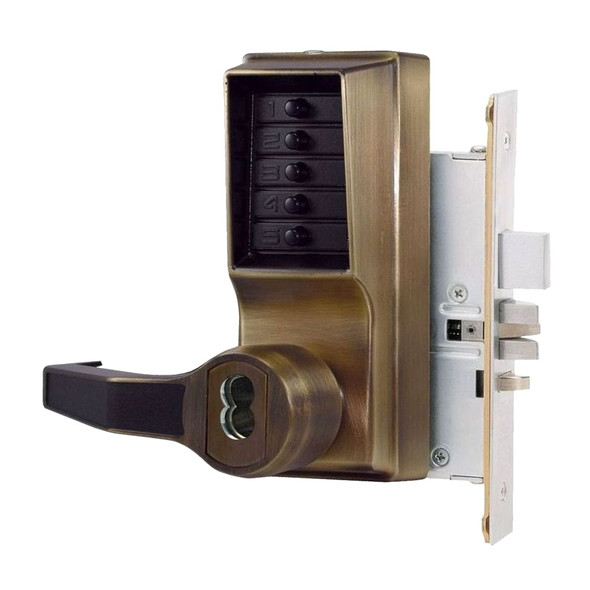

The DormaKaba Simplex RR8148S-026-41 is a mechanical pushbutton access control lock designed for facilities that need keyless entry without batteries or programming. Ideal for office buildings, hospitals, and secured areas, it eliminates key management while allowing combinations to be changed in seconds without removing the lock from the door.
This lock installs on standard 86 mortise preparation for wood or metal doors 1 3/4" to 2 1/4" thick. It supports interchangeable and removable cores from major manufacturers and meets ADA accessibility requirements. As an authorized DormaKaba dealer, E.D. Locks provides expert guidance on configuration, core selection, and installation. Contact sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Brand: DormaKaba
- Model: RR8148S-026-41
- Lock Type: Mechanical Pushbutton
- Backset: 2 3/4" (70 mm)
- Latch: 3/4" (19 mm) two-piece anti-friction; 1" (25 mm) optional deadbolt
- Door Thickness: 1 3/4" to 2 1/4" (44 mm to 57 mm)
- Mortise Preparation: Standard (86)
- Strike: 4 7/8" (124 mm) L x 1 1/4" (32 mm) W x 1/4" (6 mm) D
- Minimum Stile Recommended: 5" (127 mm)
- Core Options: Small format (Best, 6 or 7-pin); Large format (Medeco, ASSA, Yale, Abloy, Corbin Russwin, Schlage, Sargent, 5 or 6-pin)
- Housing: Cast front with unified trim plate and fixed ADA-compliant levers
- Keypad: Vandal-resistant solid metal pushbuttons
- Accessibility: ADA-compliant fixed levers
- Fire Rating: 3-hour UL/ULC for "A" labeled doors
- Weather Resistance: Yes
- Warranty: 3 years
