Description

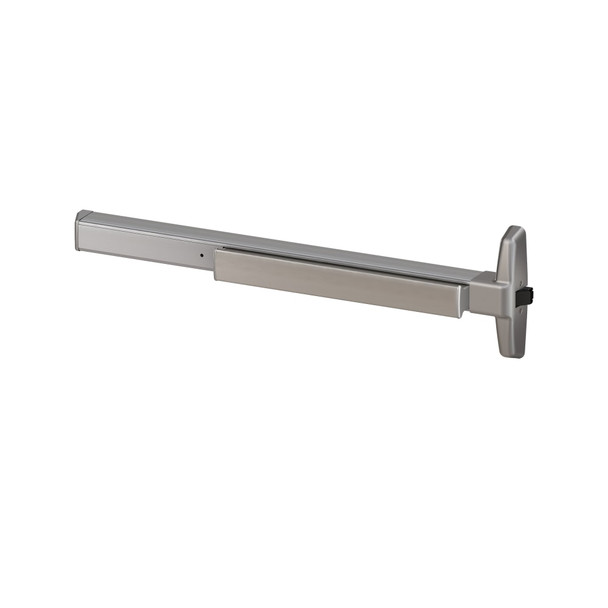

The Von Duprin RX75L 75 Series is a narrow stile exit device built for warehouses, industrial facilities, offices, multifamily buildings, and retail spaces. ANSI/BHMA Grade 1 certified, it combines mid-range pricing with reliable performance and peace of mind. Field-sizeable for single and double doors in 3' or 4' lengths, this rim-mounted device accommodates multiple trim styles and finishes.
The RX75L-DT-01 3 628 model features dummy trim and anodized aluminum finish. Verify compatibility with your door frame, trim style, and application requirements before ordering. As an authorized Von Duprin dealer, E.D. Locks offers expert guidance on sizing, keying, and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Von Duprin
- Model: RX75L-DT-01
- Device Type: Rim (surface-mounted)
- Trim Function: Dummy Trim (DT)
- Finish: Anodized Aluminum (628)
- Available Lengths: 3' and 4' (field-sizeable)
- Certifications: ANSI/BHMA A156.3 Grade 1, ANSI/UL 10C (fire-rated), ANSI/UL 305, CAN/ULC-S104, CAN/ULC-S132
- Compatible Exit Trim Models: 360, 374, 376, 386, 388
- Additional Finishes Available: Bright Brass (605), Satin Brass (606), Satin Bronze (612), Satin Nickel (619), Bright Chrome (625), Satin Chrome (626), Satin Stainless Steel (630), Aged Bronze (643e), Duranodic Dark Bronze (710), Matte Black (711)
