Description

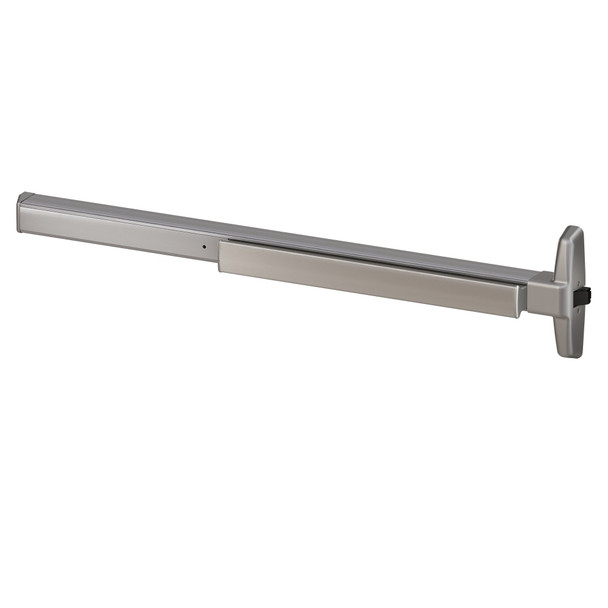

The Von Duprin RX75L-DT-01 4 628 is a narrow stile exit device engineered for warehouse, industrial, office, multifamily, retail, and commercial spaces. ANSI/BHMA Grade 1 certified, it delivers reliable emergency egress performance and peace of mind with field-sizeable 3' and 4' lengths for single and double door applications.
This rim-mounted device ships in anodized aluminum finish and accepts Von Duprin trim models 360, 374, 376, 386, and 388. Fire-rated options are available. As an authorized Allegion dealer, E.D. Locks provides expert guidance on sizing, finish selection, and compliance requirements. Contact our team at sales@edlocks.com or 1-877-207-6067 for specification details and installation support.
Specifications
- Brand: Von Duprin
- Model: RX75L-DT-01 4 628
- Device Type: Rim (surface-mounted vertical rods)
- Trim Function: Dummy Trim (DT)
- Finish: Anodized Aluminum (628)
- Available Lengths: 3' and 4' (field sizeable)
- Certification: ANSI/BHMA A156.3, 2014 Grade 1
- Fire Ratings: ANSI/UL 10C, ANSI/UL 305, CAN/ULC-S104, CAN/ULC-S132
- Compatible Trim Models: 360, 374, 376, 386, 388
