Description

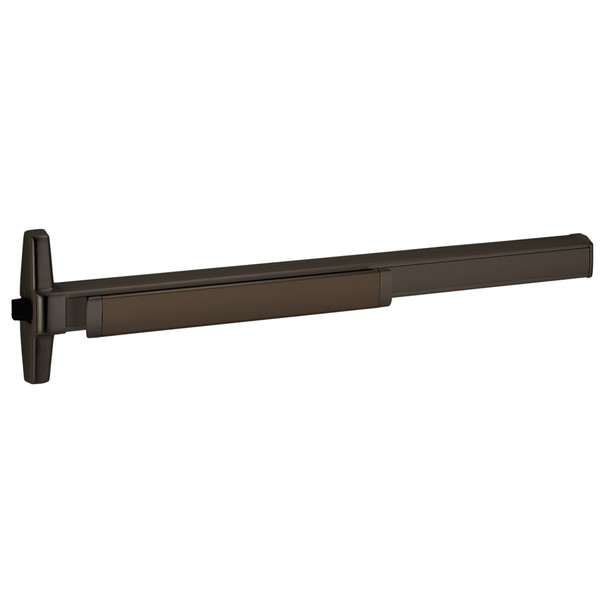

The Von Duprin RXQEL35AEO is a UL-listed rim exit device designed for single and double doors with mullion support. Grade 1 rated to ANSI A156.3-2014, it delivers reliable panic hardware for commercial and institutional facilities requiring code-compliant emergency egress on doors up to 4 feet wide.
This non-handed device (except with signal switch option) installs on wood and metal doors with included sex bolts for both materials. The 35A model features a smooth mechanism case for durability. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for keying assistance, finish selection, and expert product guidance from an authorized Von Duprin dealer.
Specifications
- Brand: Von Duprin
- Model: RXQEL35AEO 3 313
- Grade: ANSI A156.3-2014 Grade 1
- UL Listed: Yes
- Device Length: 2'4" to 3'
- Door Size: 2'10" to 4'
- Device Centerline: 39 13/16" from finished floor
- Center Case Dimensions: 8 3/16" x 1 9/16" x 2 13/32"
- Mechanism Case Dimensions: 2 1/4" x 2 1/4"
- Pushbar Projection (Neutral): 3 13/16"
- Pushbar Projection (Depressed): 3 1/16"
- Latch Bolt: Deadlocking, 3/4" throw
- Case Style: 35A - Smooth
- Compatible Doors: Single and double with mullion
