Description

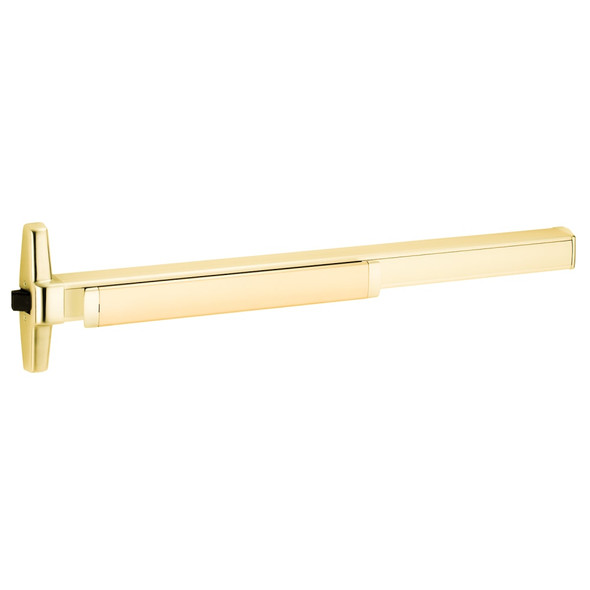

The Von Duprin RXQEL35AEO-F rim exit device is a Grade 1, UL-listed fire exit hardware solution for single and double fire-rated doors with mullion. Designed for facilities requiring code-compliant emergency egress, this non-handed device delivers deadlocking security with a smooth mechanism case and meets ANSI A156.3-2014 standards.
This exit-only (EO) configuration fits door widths from 2'10" to 4' with device lengths of 3'2"4" to 3'. Compatible with wood and metal doors, it includes fasteners for standard installation. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, and expert installation guidance.
Specifications
- Brand: Von Duprin
- Model: RXQEL35AEO-F 4 26D
- Grade: ANSI A156.3-2014 Grade 1
- UL Listed: Fire Exit Hardware
- Device Type: Rim Exit Device, Exit Only (EO)
- Handed: Non-handed (except with SS signal switch option)
- Mechanism Case: Smooth, 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)
- Mechanism Dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Latch Bolt: Deadlocking, 3/4" (19mm) throw
- Pushbar Projection (Neutral): 3 13/16" (97mm)
- Pushbar Projection (Depressed): 3 1/16" (78mm)
- Device Centerline from Finished Floor: 39 13/16" (1011mm) or 39 11/16" (1008mm) with mullion
- Device Lengths: 3'2"4" to 3' (711mm to 914mm)
- Door Width Range: 2'10" to 4' (864mm to 1219mm)
- Compatible Doors: Single and double fire-rated doors with mullion
- Material Compatibility: Wood and metal doors
- Fasteners: #425 SNB standard for end case, #325 SNB standard for EO configuration
