Description

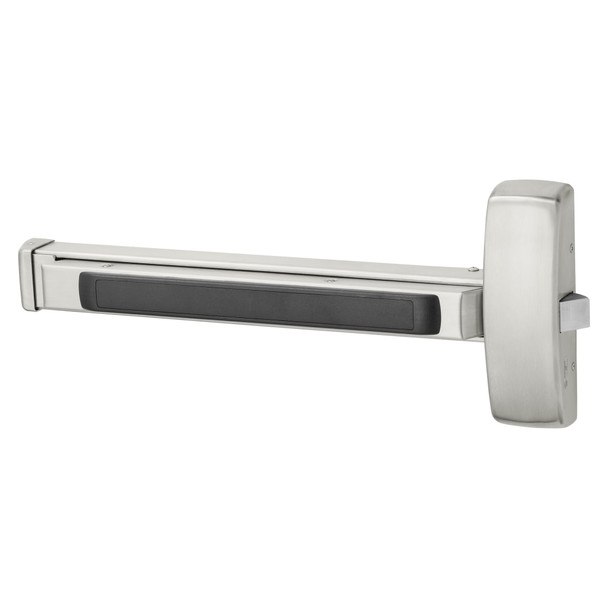

The Sargent 1256-8840E is a reversible rim exit device designed for standard-width stile applications on wood and metal doors up to 1-3/4" thick. This Grade 1 ANSI A156.3 certified device provides single-point latching for both single and double door configurations, delivering industry-standard durability and quiet, secure operation.
This E-rail model fits doors 24" to 32" wide with no cutting required on 32" doors. It is UL Fire and Panic listed for code-compliant installations. As an authorized Sargent dealer, E.D. Locks offers expert guidance on rail selection, door thickness specifications, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for compatibility confirmation.
Specifications
- Series: 8800
- Model: 1256-8840E
- Finish: 32D (Satin Stainless Steel)
- Door Types: Wood or metal
- Door Thickness: 1-3/4" (44mm)
- Rail Type: E Rail
- Door Width Range: 24" to 32" (61cm to 81cm)
- No Cutting Required: 32" doors
- Latch Type: Single point rim latching
- Applications: Single door and double door with mullions
- Certifications: ANSI A156.3 Grade 1, UL Fire and Panic listed
