Description

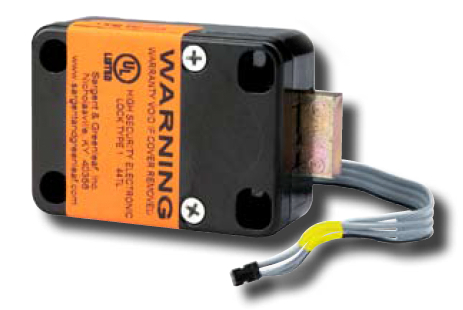

The Sargent and Greenleaf 6120-309 is a motor-driven electronic lock mechanism engineered for high-security applications. Ideal for cabinet makers, integrators, and OEMs, it eliminates vibration and bouncing attacks while supporting management reset, one master code, and eight user codes plus penalty time features up to 9 minutes to prevent unauthorized access attempts.
Compatible with biometric keypads, 2-battery keypads, standard 1-battery keypads (lighted and non-lighted), and low-profile keypads. UL Type 1 listed and RoHS compliant. For installation guidance, keypad pairing, or code configuration support, contact our authorized dealer experts at sales@edlocks.com or call 1-877-207-6067.
Specifications
- UL Type 1 Listed
- RoHS Compliant
- Motor-driven lock bolt with deadlocking square bolt model
- Bolt withstands 225 lbs. (1000 newtons) of bolt end pressure
- Non-deadlocking spring bolt model available for lightweight and inner compartment doors
- Management reset code functionality
- One master code and eight user codes
- Time delay up to 9 minutes
- Penalty time feature to prevent sequential or random code attempts
- Compatible with biometric keypad, 2-battery keypad, standard 1-battery keypad (lighted and non-lighted), and low-profile keypad
