Description

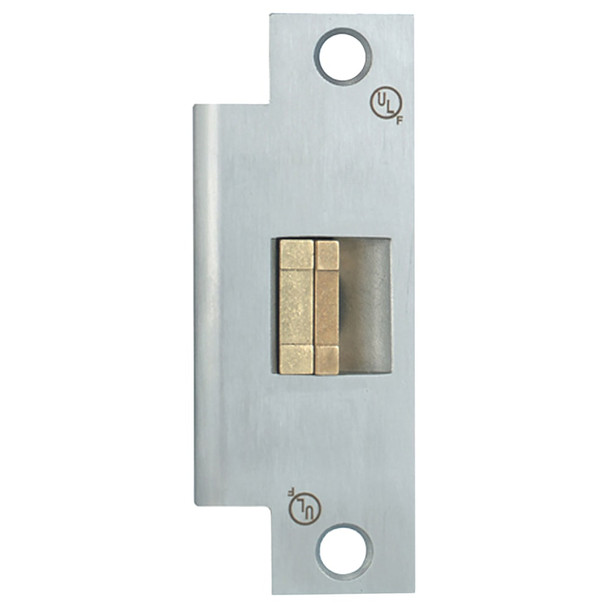

Installation InstructionsUnLatch is for any application where an electric strike would be used for a cylindrical/tubular lockset. UnLatch supports full dead latch function, releases under pressure and includes a latch status monitoring output.
FSUNL Option: FSUNL allows the UNL to become selectable for either "Fail Safe" or "Fail Secure" operation.
Product Features
- No cutting or altering of the jamb required
- Fits standard ANSI 4-7/8" strike cutout
- Also available in Polished Brass (US03) and Oil Rubbed Bronze (US10B)
- Motorized, no solenoids
- Fully concealed installation
- Maintains deadlatch function at all times
- Continuous duty
- Releases under pre-load
- Latch status sensor is standard (SPDT)
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Holding Force: 1500lbs [680kg]
- Current Draw:
- 12VDC: 40mA continuous, minimum 300mA when operating
- 24VDC: 40mA continuous, minimum 200mA when operating
- Higher capacity supply (1-3 Amps) is recommended for startup inrush to achieve
- best operation under pre-load
- Operating Temperature: -20 to +125F [-29 to +52C]
Models Available
| UNL-12 | UnLatch for Cylindrical Locks - 12VDC |
| UNL-24 | UnLatch for Cylindrical Locks - 24VDC |
