Description

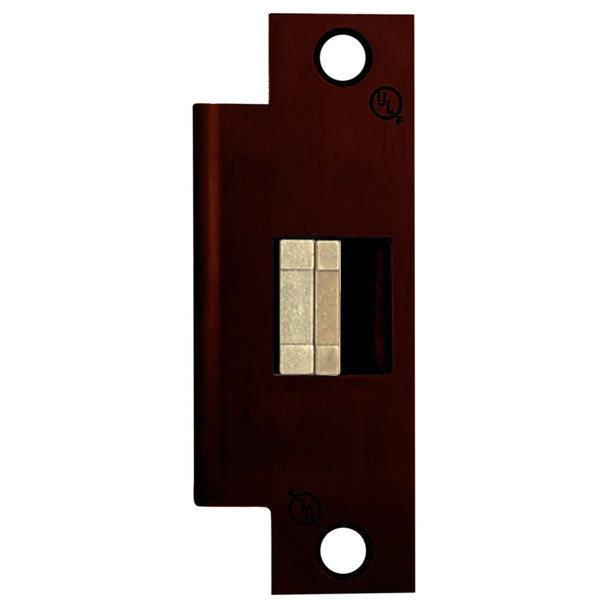

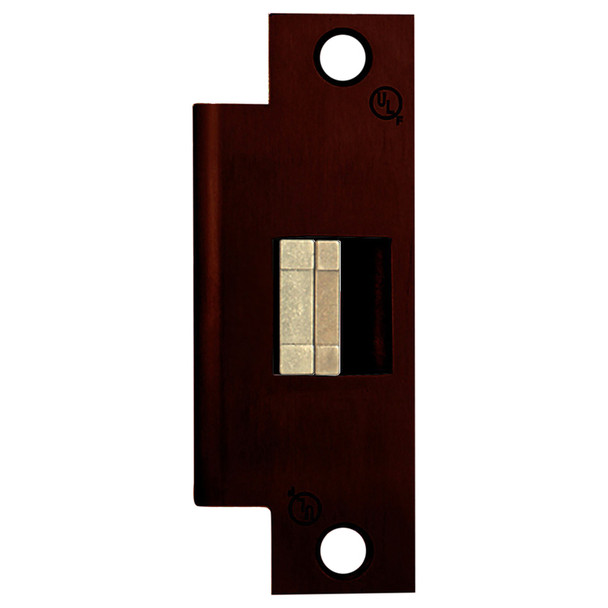

The Securitron UNL-12-10B is a universal electric strike for standard North American cylindrical locksets with or without deadlatches. It solves access control challenges by providing Grade 1 holding power, latch status monitoring, and pressure-release functionality without requiring jamb modification. Ideal for commercial doors needing reliable electronic access.
The UNL fits standard ANSI 4-7/8 inch strike cutouts and operates from -20 to +125 degrees Fahrenheit. Motor-driven operation requires 1-3 amp supply for optimal startup performance. UL listed and fire-rated for safety compliance. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for compatibility verification, installation guidance, and expert support from an authorized Securitron dealer.
Specifications
- Brand: Securitron
- Model: UNL-12-10B
- Type: Universal Electric Strike
- Holding Power: Grade 1
- Strike Cutout: ANSI 4-7/8 inch standard
- Deadlatch Support: Full function
- Pressure Release: Yes
- Latch Status Monitoring: Included
- Operating Temperature: -20 to +125 degrees Fahrenheit
- Recommended Supply: 1-3 Amps
- UL Listed: Yes
- Fire-Rated: Yes
- Installation: No jamb cutting required
