Description

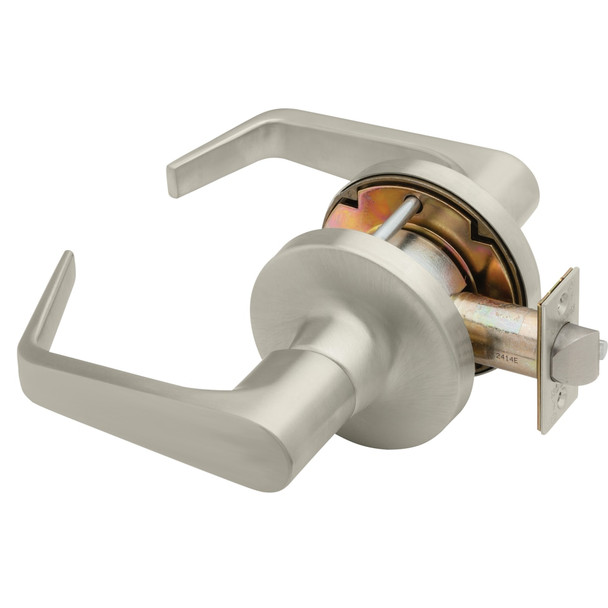

The Falcon T101S D 619 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse applications. Designed for institutional settings, it exceeds ANSI/BHMA Grade 1 testing requirements with a compression spring mechanism. The removable cylinder enables quick re-keying, making retrofits and building updates straightforward and cost-effective.
This lock accommodates standard 1-3/4" to 2-1/8" doors with a 2-3/4" backset, with adapters available for thinner doors. Non-handed design simplifies inventory. As an authorized Falcon dealer, E.D. Locks provides expert guidance on cylinder options, keying configurations, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for application assistance.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter A30775-000-00 available)
- Backset: 2-3/4" standard (2-3/8" available; 5" via link A22161-005-10)
- Bolt Projection: 9/16" standard (3/4" available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners (UL listed)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinders: 6-pin standard (5 pinned, 6-pin or 7-pin available); removable for rekeying
- Keyway: G keyway standard (A keyway on I/C core cylinders)
- Cylinder Options: Conventional, 6-pin or 7-pin interchangeable core (SFIC and large format)
- Trim: Heavy wrought brass or bronze roses; pressure cast levers
- Materials: Brass or cold formed steel parts, zinc plated and dichromated; stainless steel and phosphor bronze springs
- Handing: Non-handed
- Keys: Two nickel silver keys standard
