Description

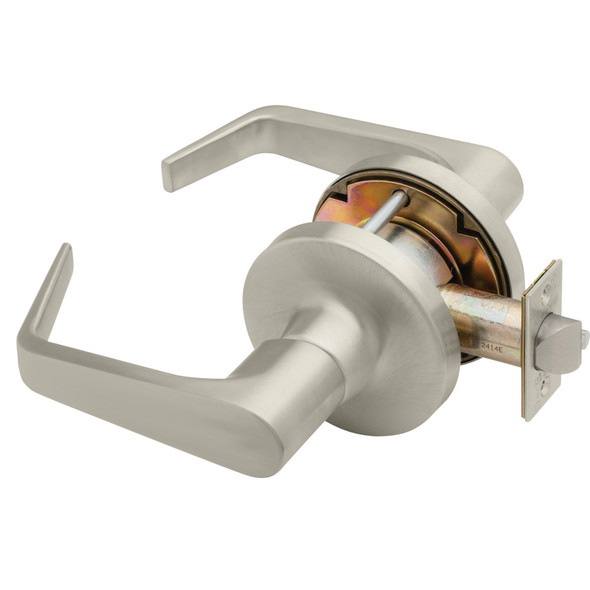

The Falcon T101S Q 619 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse applications in institutional and commercial settings. It exceeds ANSI/BHMA Grade 1 testing requirements with a compression spring design, delivering reliable security and durability at a solid price point.
This lock accepts standard manufacturer cylinders and features removable, rekeying-ready cylinder assemblies for simple retrofitting. Compatible with doors 1-3/4" to 2-1/8" thick (thin-door adapters available). Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on backset options, interchangeable core availability, and custom keying specifications.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard; thin-door adapter kit available
- Backset: 2-3/4" standard; 2-3/8" available; 5" with link
- Bolt Projection: 9/16" standard; 3/4" available
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinder: 6-pin chambers, pinned in 5 (6-pin or 7-pin available)
- Keyways: "G" standard conventional; "A" standard interchangeable core
- Handing: Non-handed
- Material: Brass or cold-formed steel, zinc-plated and dichromated; stainless steel springs
- Keys: Two nickel silver keys furnished standard
