Description

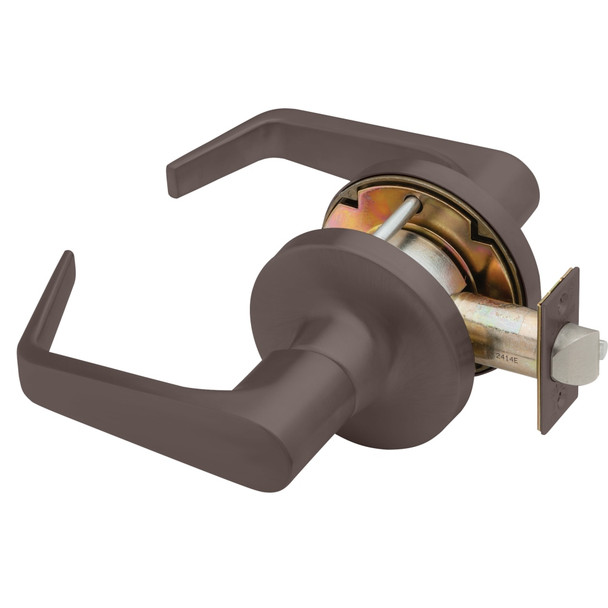

The Falcon T101S D is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Its compression spring design exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for schools, hospitals, and commercial facilities where durability and reliability are non-negotiable.
This lock accepts most manufacturer cylinders and features removable cylinder assemblies for quick re-keying without door modification. Standard door thickness is 1-3/4" to 2-1/8", with adapter kits available for thinner doors. As an authorized Falcon dealer, E.D. Locks provides expert specification guidance and fast shipping. Contact sales@edlocks.com or call 1-877-207-6067 for application support and custom configurations.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/8" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" standard
- Cylinders: 6-pin (pinned in 5), 7-pin available
- Keyways: G keyway standard (A keyway for I/C cores)
- Handing: Non-handed
- Material: Brass/cold-formed steel with zinc plating and stainless steel springs
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Keys: Two nickel silver keys included
