Description

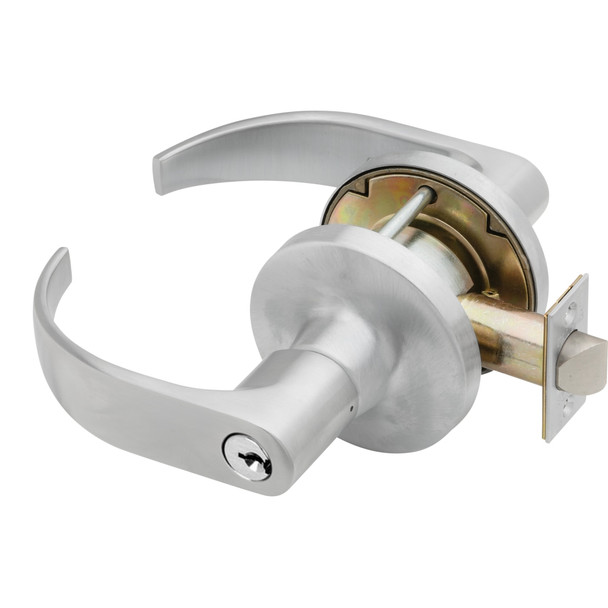

The Falcon T381CP6D Q 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial applications. It exceeds ANSI/BHMA Grade 1 testing requirements with compression spring technology and handles heavy-abuse environments reliably. The removable cylinder design enables quick re-keying without door modification, ideal for retrofitting existing buildings and simplifying key management across multi-door installations.
This lock accepts manufacturer cylinders and ships with 6-pin pinning in 5 chambers (6-chamber or 7-pin options available at no extra cost). Compatible with standard 1-3/4" to 2-1/8" doors and 2-3/4" backset; thin-door and alternate backset adapters are available. As an authorized Falcon dealer, E.D. Locks offers expert configuration guidance and free shipping over $450. Contact sales@edlocks.com or 1-877-207-6067 for specifications matching your door and keying requirements.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard; thin-door adapter kit available
- Backset: 2-3/4" standard; 2-3/8" or 5" link available
- Cylinder: 6-pin chambers, pinned in 5 (6-chamber or 7-pin available); removable for re-keying
- Keyway: G keyway standard (A keyway on I/C cores)
- Bolt Projection: 9/16" standard; 3/4" projection available
- Latch Faceplate: 2-1/4" x 1-1/8" standard with square corners, UL listed
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Material: Brass or cold-formed steel with zinc plating and dichromate; stainless steel springs
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
