Description

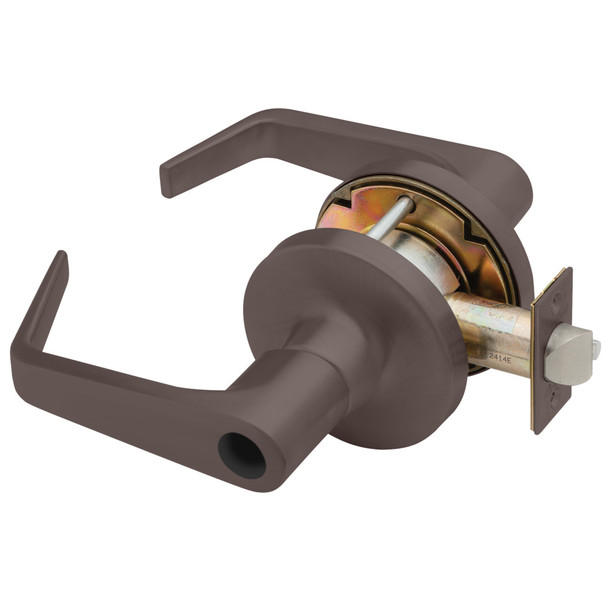

The Falcon T381LD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial applications where durability matters. Its compression spring design exceeds ANSI/BHMA Grade 1 testing standards, making it ideal for doors that demand reliable security and longevity in demanding environments.
This lock accepts most manufacturer cylinders and features removable cylinders for easy re-keying without door modification. Standard door thickness accommodation is 1-3/4" to 2-1/8"; adapters are available for thinner doors. As an authorized Falcon dealer, E.D. Locks provides expert specification guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure correct installation and keying for your project.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/8" to 2-1/8" standard (adapters available)
- Backset: 2-3/4" standard; 2-3/8" available; 5" with link
- Bolt Projection: 9/16" standard; 3/4" available
- Cylinders: 6-pin chambers, pinned in 5 (6-pin or 7-pin available)
- Keyway: G standard; A standard on interchangeable core
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Handing: Non-handed
- Material: Brass or cold-formed steel, zinc-plated; stainless steel springs
- Keys Furnished: Two nickel silver keys standard
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners standard
