Description

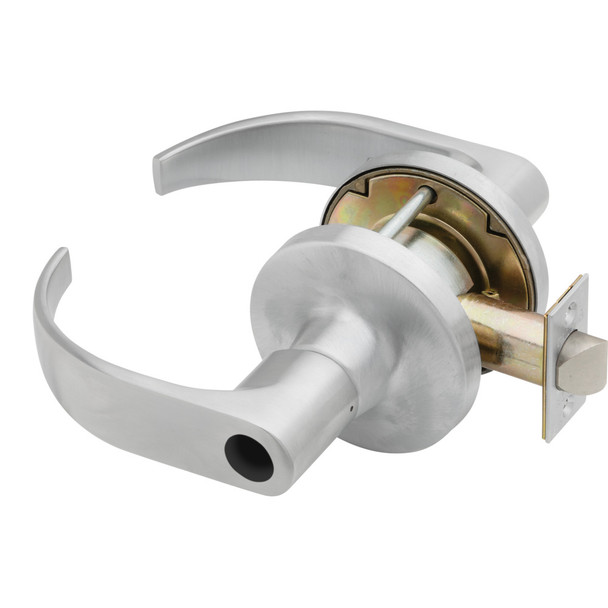

The Falcon T381LD Q 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial doors. Built with compression springs and brass or zinc-plated steel components, it exceeds ANSI/BHMA Grade 1 testing requirements and handles demanding abuse applications with solid, reliable performance.
This lock fits standard 1-3/4" to 2-1/8" door thickness with a 2-3/4" backset (2-3/8" also available). The removable cylinder design supports easy re-keying and retrofitting. As an authorized Falcon dealer, E.D. Locks provides expert guidance on configurations, thin-door adapters, and interchangeable core options. Contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Bolt Projection: 9/16" standard
- Cylinder: 6-pin chambers, pinned in 5 (6-pin or 7-pin available)
- Keyway: G (conventional); A (interchangeable core)
- Trim: Heavy wrought brass or bronze roses; pressure cast levers
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Springs: Stainless steel; cylinder springs phosphor bronze
- Keys: Two nickel silver keys furnished standard
- Handing: Non-handed
