Description

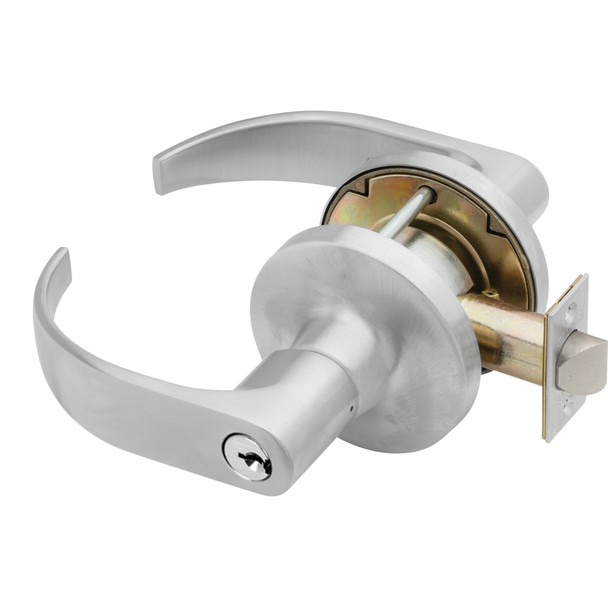

The Falcon T381PD Q 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Built with a compression spring that exceeds ANSI/BHMA Grade 1 testing requirements, this lock delivers reliable security and durability at a solid price point for buildings that demand performance.
This lock accommodates standard 1-3/4" to 2-1/8" doors with a 2-3/4" backset; thin-door and alternate backset options are available. The removable cylinder design enables quick re-keying without disassembly, simplifying retrofits and maintenance. As an authorized Falcon dealer, E.D. Locks provides expert guidance on configuration, keying, and compatibility. Contact our sales team at sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" standard
- Cylinder: 6-pin (pinned in 5), 6-pin interchangeable core, or 7-pin available
- Keyway: G keyway standard (A keyway on interchangeable core)
- Keys: Two nickel silver keys furnished
- Material: Brass or cold-formed steel, zinc-plated and dichromated; stainless steel springs
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Handing: Non-handed
