Description

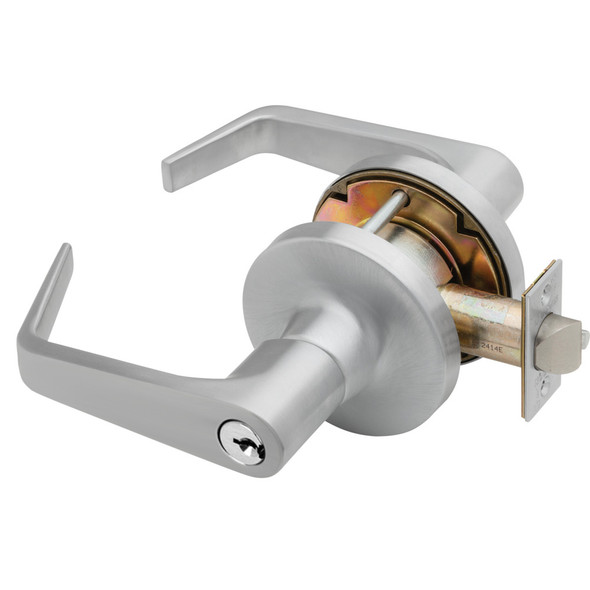

The Falcon T501PD Q 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial applications. It exceeds ANSI/BHMA Grade 1 testing requirements with a compression spring design, brass and stainless steel construction, and removable cylinder for simple re-keying and retrofitting without replacing the entire lock body.
Standard door thickness accommodates 1-3/4" to 2-1/8" with optional adapters available. Backset options include 2-3/4" standard or 2-3/8", with 5" available via link kit. Cylinders are drilled with 6-pin chambers (pinned in 5, upgradeable to 6 or 7-pin). As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing, and installation. Contact sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter available)
- Backset: 2-3/4" standard; 2-3/8" or 5" optional
- Bolt Projection: 9/16" standard; 3/4" optional
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyways: G keyway standard (conventional); A keyway standard (I/C)
- Keying: Two nickel silver keys furnished; interchangeable core (SFIC/large format) available
- Handing: Non-handed
- Construction: Brass/cold-formed steel, zinc plated, dichromated; stainless steel springs
- Trim: Wrought brass or bronze roses; pressure cast levers
