Description

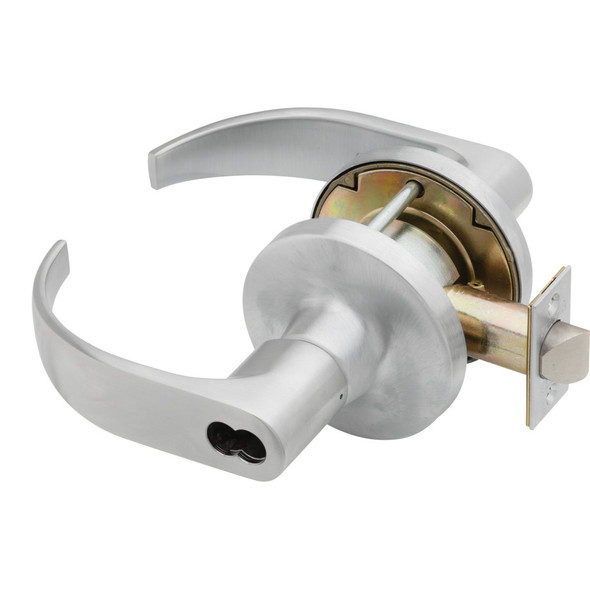

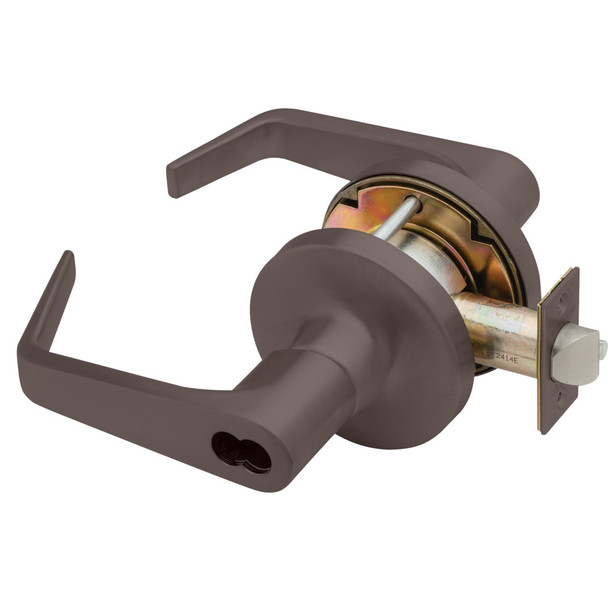

The Falcon T411BD is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic institutional and commercial doors. Engineered with a compression spring that exceeds ANSI/BHMA Grade 1 testing, this lock handles abuse and frequent use while remaining easy to rekey. The removable cylinder design simplifies retrofitting and maintenance in multi-building facilities.
Standard for 1-3/4" to 2-1/8" door thickness with a 2-3/4" backset; thin door and extended backset options are available. Brass and stainless steel construction resists corrosion. Non-handed design works on any door. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, interchangeable core availability, and installation guidance tailored to your building.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/8" or 2-3/4" standard
- Bolt Projection: 9/16" standard
- Cylinder: 6-pin drilled, pinned in 5 (6 or 7-pin available)
- Keyway: G standard (A standard on interchangeable core)
- Handing: Non-handed
- Material: Brass, cold formed steel (zinc plated, dichromated), stainless steel springs
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Keys: Two nickel silver keys standard
