Description

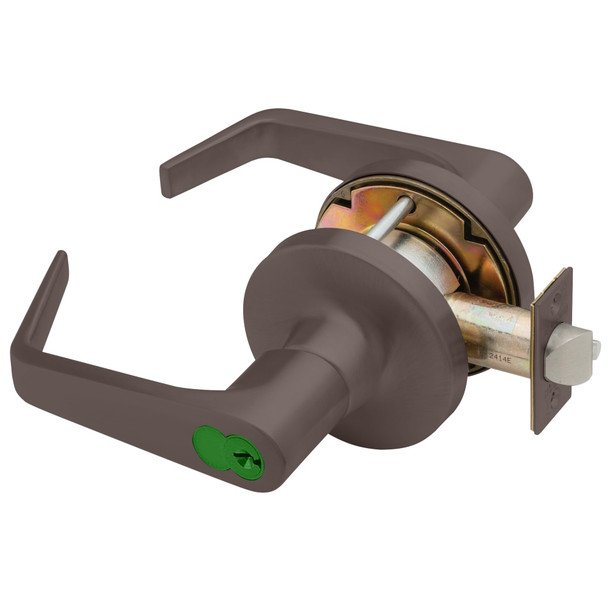

The Falcon T411HD D 613 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and heavy-abuse institutional applications. Constructed with compression springs that exceed ANSI/BHMA Grade 1 testing, it features a removable cylinder for quick re-keying and accepts most manufacturers' cylinders. Ideal for retrofitting existing buildings with a solid, reliable locking solution.
Fits standard door thickness 1-3/4" to 2-1/8" with 2-3/4" backset (2-3/8" and 5" backset options available). Non-handed design simplifies installation, and the lock comes preassembled for faster setup. For technical assistance selecting the right configuration, keying options, or thin-door adapters, contact our authorized dealer specialists at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" and 5" available)
- Bolt Projection: 9/16" (3/4" option available)
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard
- Finish: Brass or zinc-plated cold-formed steel, dichromated
- Springs: Stainless steel
- Keys: Two nickel silver keys standard
- Handing: Non-handed
- Strike: 4-7/8" x 1-1/4" ANSI strike
