Description

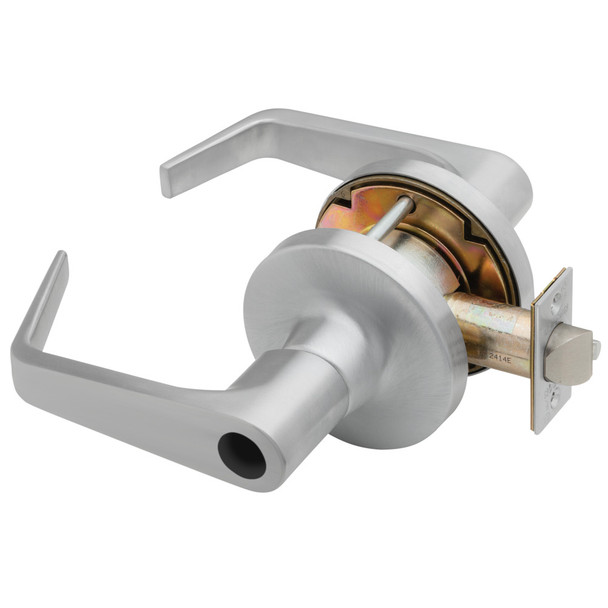

The Falcon T411LD D 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Non-handed design with removable cylinders for easy re-keying makes retrofitting existing buildings simple and cost-effective. Brass and stainless steel construction exceeds ANSI/BHMA Grade 1 testing requirements.
Standard 1-3/4" to 2-1/8" door thickness with 2-3/4" backset; thin door adapters and alternative backsets available. Accepts any manufacturer's cylinder in 6-pin or 7-pin configurations, plus interchangeable core options. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, compatibility, and installation support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard; 2-3/8" available; 5" with link kit
- Bolt Projection: 9/16" standard; 3/4" available
- Latch Faceplates: 2-1/4" x 1-1/8" standard with square corners
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Cylinder: 6-pin standard (5 pinned); 6-chamber pinning or 7-pin available; removable for re-keying
- Keyway: G-keyway standard on conventional; A-keyway on interchangeable core
- Handing: Non-handed
- Material: Brass and cold-formed steel, zinc-plated and dichromated; stainless steel springs
- Roses: Heavy wrought brass or bronze over pressure-cast inserts
- Keys: Two nickel silver keys furnished standard
- Interchangeable Core: Available in small format (SFIC) and large format
