Description

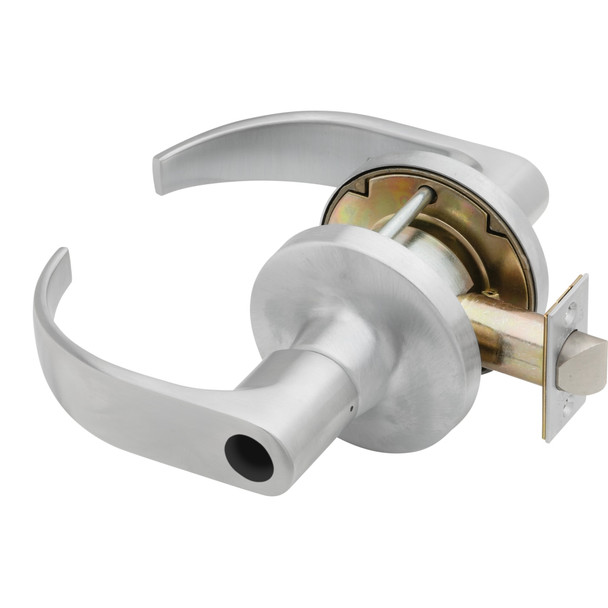

The Falcon T411LD Q 626 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic, high-abuse environments. Designed for institutional applications, this lock exceeds ANSI/BHMA Grade 1 testing requirements with a compression spring mechanism and solid brass or cold-formed steel construction. Its removable cylinder allows quick, tool-free re-keying without door removal, making retrofits and master key changes effortless.
Standard for 1-3/4" to 2-1/8" doors with 2-3/4" backset; adapters and alternative backsets available. The lock accepts most manufacturer cylinders and comes pinned in 5 chambers with interchangeable core options (SFIC and large format). Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on handing, keyway selection, and installation support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Bolt Projection: 9/16" standard
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard
- Material: Brass or zinc-plated, dichromated cold-formed steel; stainless steel springs
- Handing: Non-handed
- Keys: Two nickel silver keys furnished
- Finish: Q (626 satin chrome)
